Ubiquiti airCube
airMAX® Home Wi-Fi Access Point with PoE In/Out

Overview:

Ubiquiti Networks introduces the airCube™, a cost-effective wireless access point for use in your customer deployments.

Wireless Performance

• Dual-band, 802.11ac, 2x2 MIMO technology for maximum wireless performance
• 2.4 GHz radio band Speeds of up to 300 Mbps
• 5 GHz radio band Speeds of up to 866.7 Mbps

Versatile Power Options

Both models offer convenient PoE passthrough to power a 24V airMAX CPE device, so you can use a single PoE adapter to power both devices.

To provide sufficient power for PoE passthrough:

• The airCube AC requires the included power adapter or 24V, 1A PoE input.

Intuitive Software

Management options feature a graphical user interface designed for streamlined setup and control.

Available options include:

• UNMS Provides advanced remote control of Ubiquiti® devices. Use the UNMS™ app to manage your devices using a tablet or smartphone.
• Web UI Enables a standalone utility for basic configuration.

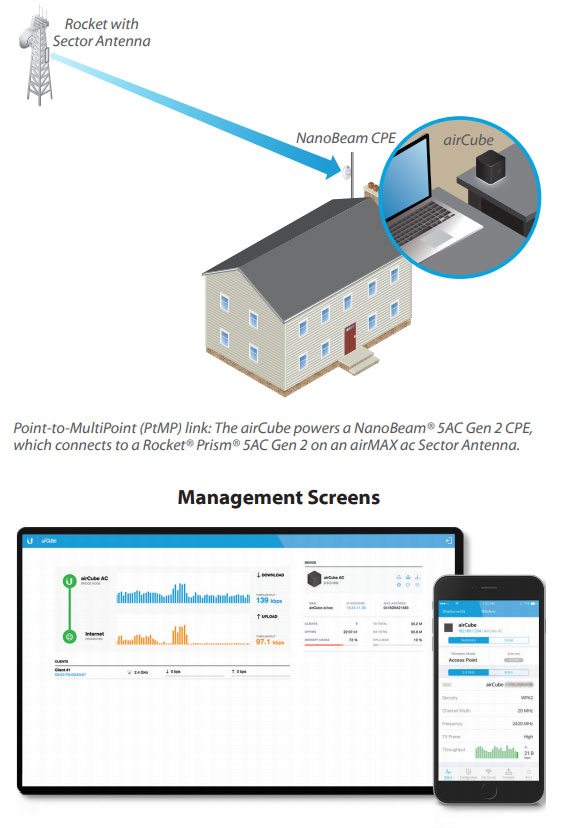

Example Typical Deployment

Specifications:

airCube Specifications
Dimensions	87.80 x 89.50 x 89.25 mm (3.46 x 3.52 x 3.51")
Weight	280 g (9.88 oz)
Power Supply	24VDC
Power Method	24VDC, 0.83A or PoE 24V In on LAN Port 1
Supported Power Voltage	22-26V
Max. Power Consumption	8.5W
PoE Out	Controllable 24V PoE Out (+4, 5; -7, 8) on WAN Port
Management Interface	Wi-Fi / Ethernet
Networking Interface	(4) Gigabit Ethernet Ports
LED	Status
Max. TX Power	22 dBm
Antenna Gain	2.4 GHz	5 GHz
	4 dBi	5 dBi
Max. Speeds	2.4 GHz	5 GHz
	300 Mbps	866.7 Mbps
Enclosure Characteristics	Black Plastic
ESD/EMP Protection	±24 kV Contact / Air
Operating Temperature	-10 to 50° C (-14 to 122° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC

Documentation:

Download the Ubiquiti airCube Datasheet (PDF).
