Ubiquiti Instant 802.3af Adapter
Instantly Transform any POE Device into a Fully 48V 802.3af Compliant Product

Overview:

The Instant 802.3af Adapter transforms almost any Ubiquiti PoE (Power over Ethernet) device into a fully compliant 48V, 802.3af-compatible product.

• Available in both indoor and outdoor versions
• Longer 48V cable runs capable because of increased efficiency of power delivery (less current)
• Additional +/-15kV of ethernet isolation and ESD/Surge protection to device
• Works seamlessly with Cisco Catalyst and other 802.3af Switches for remote power control

PoE Switch Compatibility

The Instant 802.3af Adapter works seamlessly with a variety of 802.3af switches for remote power control applications. As you manage and monitor your network, you can conveniently power or power cycle your remote devices using your 802.3af switch.

For ease of power management, you can centralize the 802.3af switch and power source, and you can include a UPS (Uninterruptible Power Supply) as a backup. This way your network continues to run even during a temporary power outage.

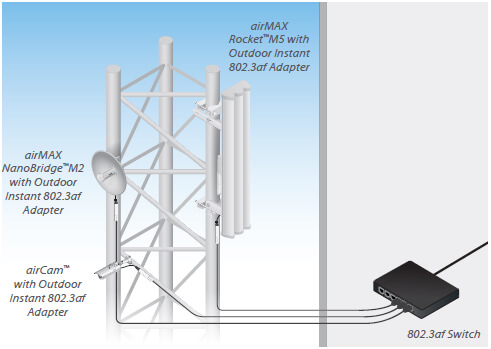

Outdoor products powered by 802.3af switch

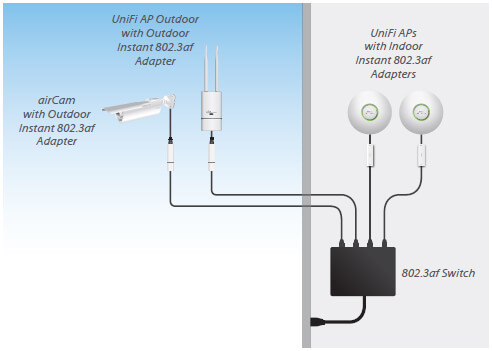

Indoor and outdoor products powered by 802.3af switch

Features:

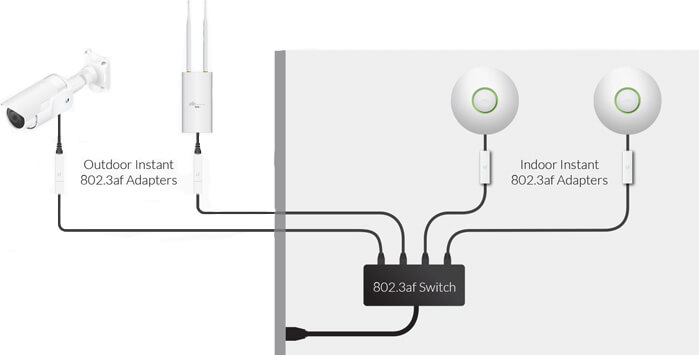

Ubiquiti Compatibility

Available in both indoor and outdoor versions, the Instant 802.3af Adapter is compatible with most Ubiquiti PoE devices* using 100 Mbps ports, including:

• airMAX
• airVision
• UniFi
• mFi

Remote Power Control

Instant 802.3af Adapters work with 802.3af switches so you can conveniently powercycle your remote devices.

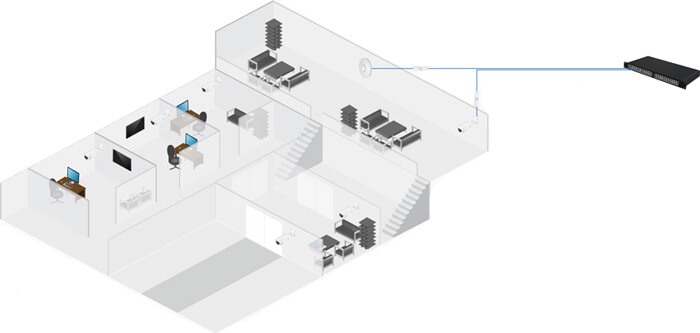

Longer Cable Runs

High voltage carries power more efficiently (using less current) than low voltage. The Instant 802.3af Adapter enables longer 48V cable runs due to a more efficient power delivery – so your products can get the power they require even when they are located far from the 802.3af switch.

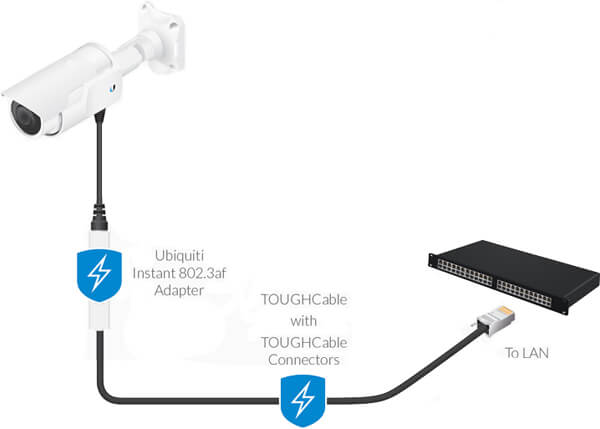

ESD/Surge Protection

The Instant 802.3af Adapter provides an additional ±15kV of Ethernet isolation for built-in protection that lessens the risk of ESD or surge damage to your devices.

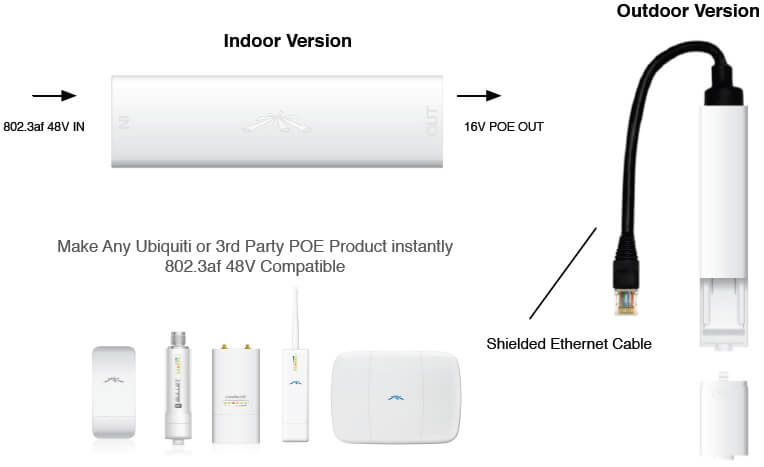

Product Views:

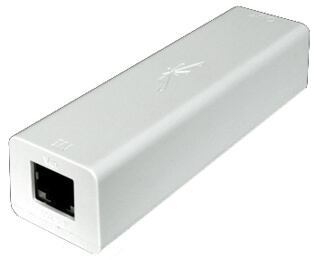

Instant 802.3af Adapter, Indoor Version
Model INS-8023AF-I

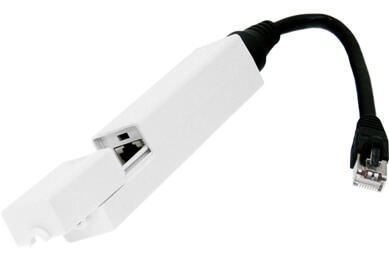

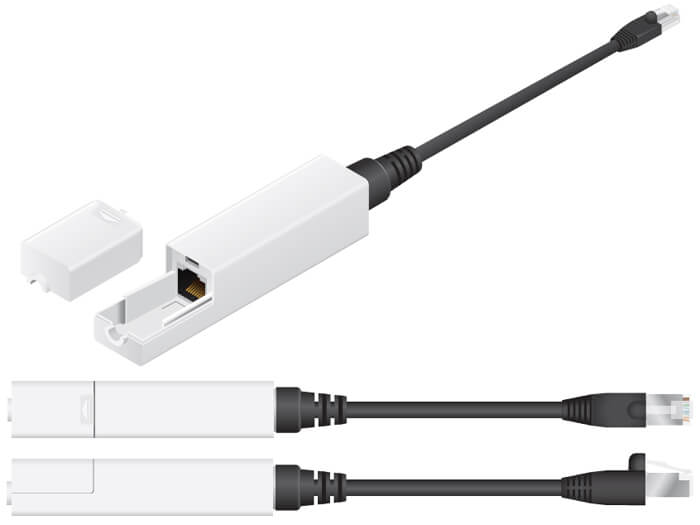

Instant 802.3af Adapter, Outdoor Version
Model INS-8023AF-O

Specifications:

	Indoor Version	Outdoor Version
Electrical Information
Input	48V, 802.3af (with Sensing Capability)	48V, 802.3af (with Sensing Capability)
Output	18V, 0.7A	18V, 0.7A
Output POE method	Positive 4,5; Return 7,8	Positive 4, 5; Return 7, 8
Ethernet ESD/Surge Protection	+/-15kV	±15kV
Physical Information
Dimensions	93.5 x 27 x 21.5 mm	315 x 25.8 x 24.8 mm
Weight	200 g	300 g
Temperature Operation	0 to 70C	-30 to 70° C
Output Ethernet Cable	N/A	Shielded CAT5, Length: 10 cm

Ubiquiti Products Compatible with Instant 802.3af Adapters:

airMAX Product	Compatibility
Rocket M
Bullet M
Bullet Titanium M
NanoBridge M
NanoStation M
NanoStationloco M
PowerBridge M
NanoBridge M
PowerBridge M
airGrid M
PicoStation M
airVision Product	Compatibility
airCam
airCam Dome
airCam Mini
UniFi Product	Compatibility
UniFi AP
UniFi AP LR
UniFi AP Outdoor
mFi Product	Compatibility
mPort
mPort Serial

Documentation:

Download the Ubiquiti Instant 802.3af Adapter Datasheet (PDF).
