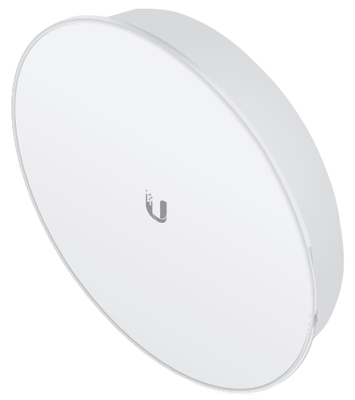

Ubiquiti PowerBeam ac 500 ISO
5 GHz airMAX ac Bridge with 500 mm RF Isolated Reflector

Ubiquiti PowerBeam ac 500 ISO

Ubiquiti Products
PowerBeam ac Series
PowerBeam 5AC, 500mm, Isolator
#PBE-5AC-500-ISO
Get a Quote!

Click here to jump to more pricing!

Overview:

Incorporating advanced engineering with proprietary airMAX ac technology, the PowerBeam ac ISO is ideal for deployments requiring maximum performance and RF isolation. Ubiquiti Networks launches the PowerBeam ac ISO, an airMAX ac Bridge that is ideal for deployments requiring maximum performance and RF isolation.

Improved Noise Immunity

The PowerBeam ac ISO directs RF energy in a tighter beamwidth, and its integrated isolator design improves RF isolation to spatially filter out interference. With its combination of focused beam directivity and RF isolation, the PowerBeam ac ISO blocks noise to improve noise immunity. This is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design

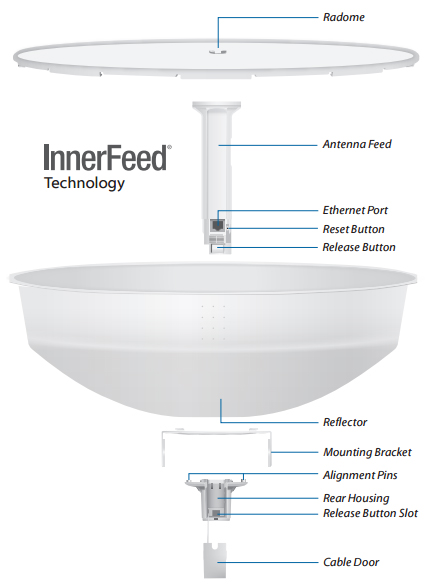

Ubiquiti's InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.

Application Examples

Application Examples

The PowerBeam mounted outdoors with the Dish Reflector installed provides directional outdoor coverage. (The gain depends on the reflector.)

with the Dish Reflector

The PowerBeam mounted outdoors without the Dish Reflector installed provides outdoor-to-indoor coverage using the 3 dBi Antenna Feed only.

without the Dish Reflector

airMAX Technology Included

airMAXUnlike the standard WiFi protocol, Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.

This "time slot" method eliminates hidden node collisions and maximizes air time efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.

  • Intelligent QoS - Priority is given to voice/video seamless streaming.
  • Scalability - High capacity and scalability.
  • Long Distance - Capable of high-speed, carrier-class links.

airMAX TDMA Technology
Up to 100 airMAX stations can be connected to an airMAX Sector; four airMAX
stations are shown to illustrate the general concept

Superior Performance

The next-generation airMAX ac technology boosts the advantages of our proprietary TDMA protocol.

Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Improved Latency and Noise Immunity
Improved Latency and Noise Immunity

airMAX Network Scalability
airMAX Network Scalability

Throughput Breakthrough

airMAX ac supports high data rates, which require dense modulation: 256QAM – a significant increase from 64QAM, which is used in airMAX.

With their use of proprietary airMAX ac technology, airMAX ac products supports up to 450+ Mbps real TCP/IP throughput – up to triple the throughput of standard airMAX products.

Superior Throughput Performance

Superior Throughput Performance
