Ubiquiti PoE Adapters
Designed by Ubiquiti for Station/CPE Devices and BaseStation Equipment

Overview:

Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices*, including:

• airFiber
• airMAX
• airVision
• UniFi
• mFi

Ubiquiti PoE Adapter Compatibility with the airGateway

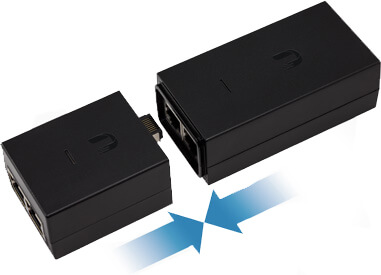

Specific PoE Adapter models are designed to work with the airGateway™. You can deploy the airGateway indoors to connect wireless client devices.

The airGateway is available in two models:

• airGateway - Standard model with an internal antenna
• airGateway-LR - Long-range model with an external antenna for extended range

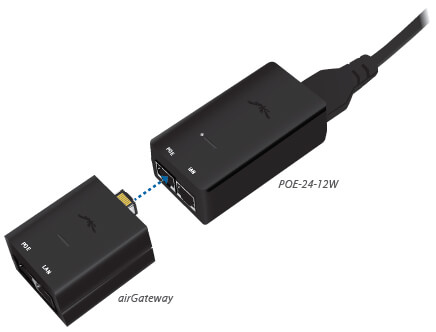

The airGateway plugs into either of these PoE Adapters:

Model Number	Compatibility
POE-15-12W	Yes
POE-24-12W	Yes
POE-24-12W-G*	Yes

* airGateway maximum speed: 100 Mbps

Protection

Ubiquiti PoE Adapters provide a variety of features to help protect your Ubiquiti PoE devices:

• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground

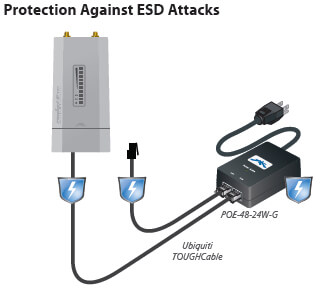

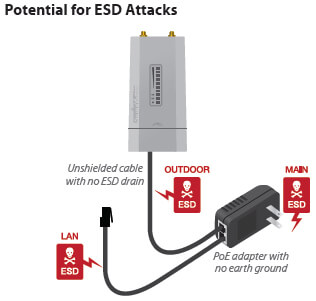

ESD attacks are the leading cause for device failures. You can effectively protect against ESD attacks using a grounded Ubiquiti PoE Adapter, TOUGHCable™, and TOUGHCable Connectors.

* Check product specifications to verify PoE compatibility.

Features:

Device Protection

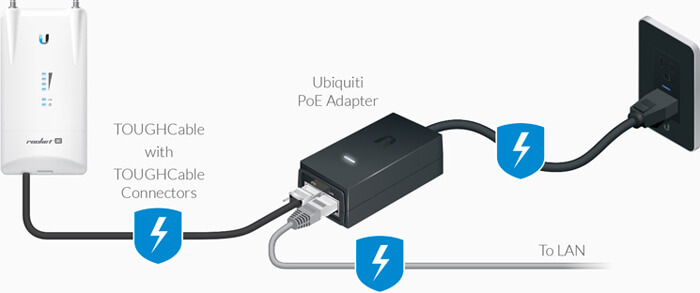

PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable™, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.

Convenient Wall-Mounting

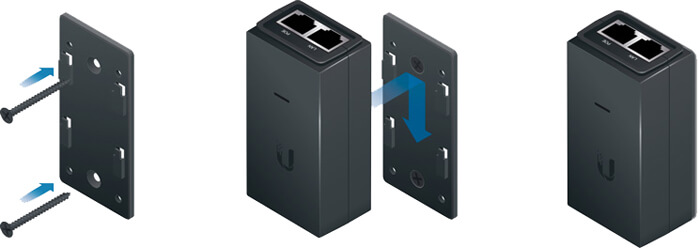

The 24V, 0.5A models, POE-24-12W and POE-24-12W-G, are wall-mountable using the optional wall-mount brackets.

Seamless airGateway Compatibility

The 15V, 0.8A and 24V, 0.5A models, POE-15-12W, POE-24-12W and POE-24-12W-G, work with the airGateway™ to bridge airMAX connections to Wi-Fi at customer locations.

Product Views:

Specifications:

	POE-15-12W	POE-24-12W	POE-24-12W-G	POE-24-24W
Dimensions	85.1 x 44 x 29.2 mm (3.35 x 1.73 x 1.15 in)	87 x 84 x 29.2 mm (3.43 x 3.31 x 1.15 in)	87 x 84 x 29.2 mm (3.43 x 3.31 x 1.15 in)	88 x 57 x 33 mm (3.47 x 2.24 x 1.30 in)
Weight	91.7 g (3.24 oz)	92 g (3.25 g)	99.4 g (3.51 g)	135 g (4.76 oz)
Output Voltage	15VDC @ 0.8A	24VDC @ 0.5A	24VDC @ 0.5A	24VDC @ 1.0A
LAN Activity Indicator	No	No	No	No
Gigabit LAN Port	No	No	Yes	No
Remote Reset Capability	No	Yes	Yes	Yes
Reset Button	No	Yes	Yes	Yes
Input Voltage	90-260VAC @ 47-63 Hz	90-260VAC @ 47-63 Hz	90-260VAC @ 47-63 Hz	90-260VAC @ 47-63 Hz
Input Current	0.3A @ 120VAC, 0.2A @ 240VAC	0.3A @ 120VAC, 0.2A @ 240VAC	0.3A @ 120VAC, 0.2A @ 240VAC	0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current	<30A Peak @120VAC, <60A Peak @ 230VAC	<30A Peak @120VAC, <60A Peak @ 230VAC	<30A Peak @120VAC, <60A Peak @ 230VAC	<60A Peak @120VAC, <120A Peak @ 230VAC
Efficiency	75+%	75+%	75+%	80+%
Output Ripple	1% Max.	1% Max.	1% Max.	1% Max.
Switching Frequency	50 kHz	50 kHz	50 kHz	65 kHz
Line Regulation	± 1%	± 1%	± 1%	± 1%
Load Regulation	± 3%	± 3%	± 3%	± 3%
2-Pair Powering	Pins 4, 5 (+) and Pins 7, 8 (-)	Pins 4, 5 (+) and Pins 7, 8 (-)	Pins 4, 5 (+) and Pins 7, 8 (-)	Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature	0 to 40° C (32 to 104° F)
Storage Temperature	-30 to 70°C (-22 to 158° F)
Operating Humidity	35 to 95% Non-Condensing
AC Connector	IEC-320 C6
Data IN / POE	RJ45 Shielded Socket
Surge Protection	Difference and Common Mode
Clamping Protection	11V Data, 60V Power
Max. Surge Discharge	1500A (8/20μS) Power
Peak Pulse Current	36A (10/1000μS) Data
Shunt Capacitance	<5 pf data
Response Time	<1 nS
Compliance	IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B
AC Cable with Earth Ground	USA, EU, AR, BR, UL, CCC, Mexico
	POE-24-24W-G	POE-48-24W	POE48-24W-G	POE-50-60W
Dimensions	88 x 57 x 33 mm (3.47 x 2.24 x 1.30 in)	88 x 57 x 33 mm (3.47 x 2.24 x 1.30 in)	91.8 x 59.9 x 33 mm (3.61 x 2.36 x 1.30 in)	100.95 x 60 x 33 mm (3.97 x 2.36 x1.30 in)
Weight	158.5 g (5.59 oz)	135.5 g (4.78 oz)	158.5 g (5.59 oz)	192 g (6.77 oz)
Output Voltage	24VDC @ 1.0A	48VDC @0.5A	48VDC @0.5A	50VDC @ 1.2A
LAN Activity Indicator	No	No	No	No
Gigabit LAN Port	Yes	No	Yes	Yes
Remote Reset Capability	Yes	No	No	No
Reset Button	Yes	No	No	No
Input Voltage	90-260VAC @ 47-63 Hz	90-260VAC @ 47-63 Hz	90-260VAC @ 47-63 Hz	90-260VAC @ 47-63 Hz
Input Current	0.6A @ 120VAC, 0.4A @ 240VAC	0.6A @ 120VAC, 0.4A @ 240VAC	0.6A @ 120VAC, 0.4A @ 240VAC	1.3A @ 120VAC, 0.75A @ 240VAC
Inrush Current	<60A Peak @120VAC, <120A Peak @ 230VAC	<60A Peak @120VAC, <120A Peak @ 230VAC	<65A Peak @120VAC, <130A Peak @ 230VAC	<100A Peak @120VAC, <200A Peak @ 230VAC
Efficiency	80+%	80+%	80+%	85+%
Output Ripple	1% Max.	1% Max.	1% Max.	1% Max.
Switching Frequency	65 kHz	65 kHz	65 kHz	65 kHz
Line Regulation	± 1%	± 1%	± 1%	± 1%
Load Regulation	± 3%	± 3%	± 3%	± 3%
2-Pair Powering	Pins 4, 5 (+) and Pins 7, 8 (-)	Pins 4, 5 (+) and Pins 7, 8 (-)	Pins 4, 5 (+) and Pins 7, 8 (-)	Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
Operating Temperature	0 to 40° C (32 to 104° F)
Storage Temperature	-30 to 70°C (-22 to 158° F)
Operating Humidity	35 to 95% Non-Condensing
AC Connector	IEC-320 C6
Data IN / POE	RJ45 Shielded Socket
Surge Protection	Difference and Common Mode
Clamping Protection	11V Data, 60V Power
Max. Surge Discharge	1500A (8/20μS) Power
Peak Pulse Current	36A (10/1000μS) Data
Shunt Capacitance	<5 pf data
Response Time	<1 nS
Compliance	IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B
AC Cable with Earth Ground	USA, EU, AR, BR, UL, CCC, Mexico

Documentation:

Download the Ubiquiti PoE Adapters Datasheet (PDF).
