Ubiquiti UniFi Access Point AC HD
Wireless Indoor/Outdoor 802.11ac Wave 2 Enterprise Wi-Fi Access Point


Ubiquiti UniFi Access Point AC HD
Wifi abgn ac Certified

Ubiquiti Products
UniFi Access Points
UNIFI AP AC HIGH DENSITY
#UAP-AC-HD-US
Our Price: $349.00
5PK UNIFI AP AC HIGH DENSITY
#UAP-AC-HD-5-US
Our Price: $1,679.00
UNIFI WAVE2 AC AP SECURITY &
#UAP-AC-SHD-US
Our Price: $549.00
5PK UNIFI WAVE2 AC AP SECURITY
#UAP-AC-SHD-5-US
Our Price: $2,649.00

Click here to jump to more pricing!

Overview:

High-Density Applications Powered by MU-MIMO Technology

802.11ac Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology allows a Wave 2 AP to communicate with multiple clients at the same time – significantly increasing multi-user throughput and overall user experience.

Scalable Enterprise Wi-Fi Management

UniFiUniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi AC HD AP has a refined industrial design and can be easily installed using the included mounting hardware.

Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.

Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.

Fast Roaming

All Ubiquiti 802.11ac products support fast roaming. Fast Roaming works on all existing APs (11n and 11ac), does not have the single-channel requirement of ZHO, and thus works well in even the most dense client environments. UniFi's Fast Roaming "feature" is an optimization done in the background that doesn't require client device support.

Save Money and Save Time

UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the option of deploying the compact UniFi Cloud Key with built-in software.

Powerful Hardware

The UniFi 802.11AC Dual-Radio APs feature the latest in Wi-Fi 802.11AC MIMO technology.

Intuitive UniFi Controller Software

Configure and manage your APs with the easy-to-learn user interface.

Expandable

Unlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a three-pack) and expand to thousands while maintaining a single unified management system.

Features:

Mu-MIMO On/Off

radio hardware acceleration

Radio Hardware Acceleration

Independent 2.4 GHz and 5 GHz dedicated hardware offload for maximized multi-user throughput and reduced latency

cpu hardware acceleration

CPU Hardware Acceleration

Dedicated hardware offload for QoS, Guest Control, and Client Management

optimized for mu-mimo

Optimized for MU-MIMO

Genetically optimized antenna arrays for maximal utilization of 802.11ac Wave 2 MU-MIMO Beamforming

beamforming

Beamforming

Data is sent and received using multiple antennas to increase throughput and range.

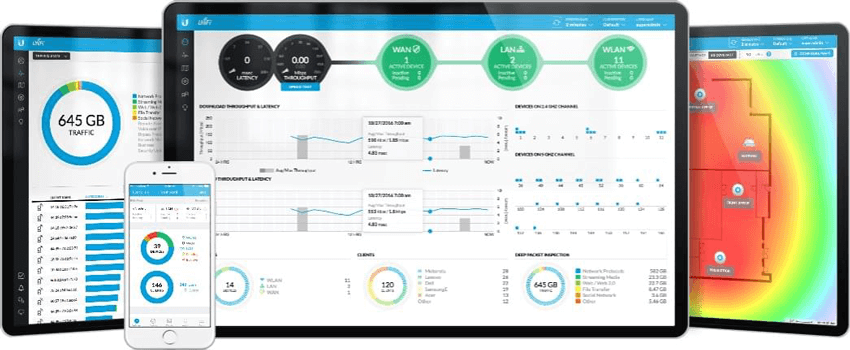

Advanced Features in UniFi Controller

UniFi is quickly expanding to a full Software Defined Networking (SDN) solution with seamless integration of high-performance switching, gateways, and more..

advanced features in UniFi controller



Deployment:

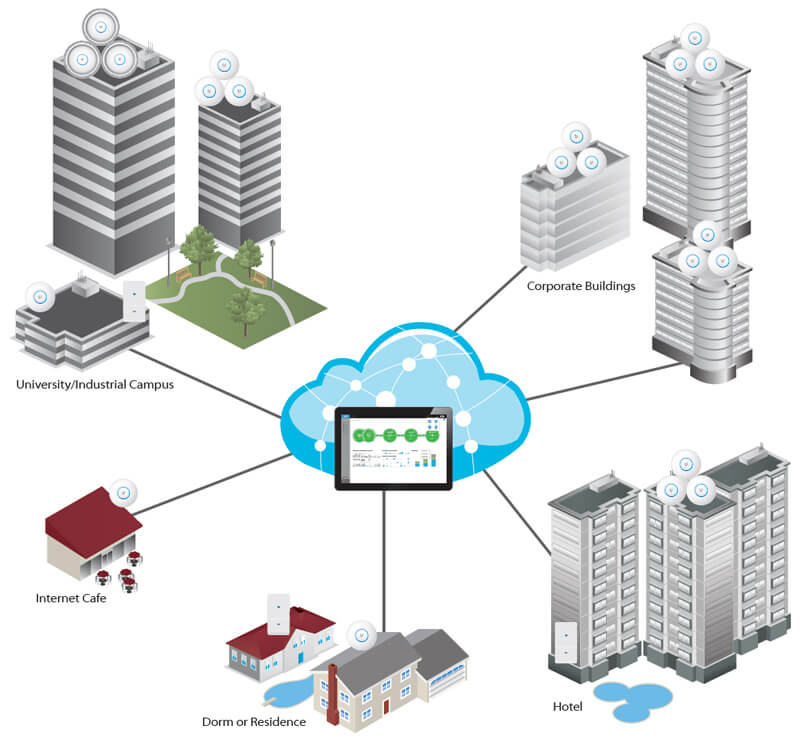

Extend Your Coverage

With the UniFi Controller software running in a NOC or in the cloud, administrators can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Below are some deployment examples.

Below are some examples of how UniFi APs can be deployed.

Extend Your Coverage

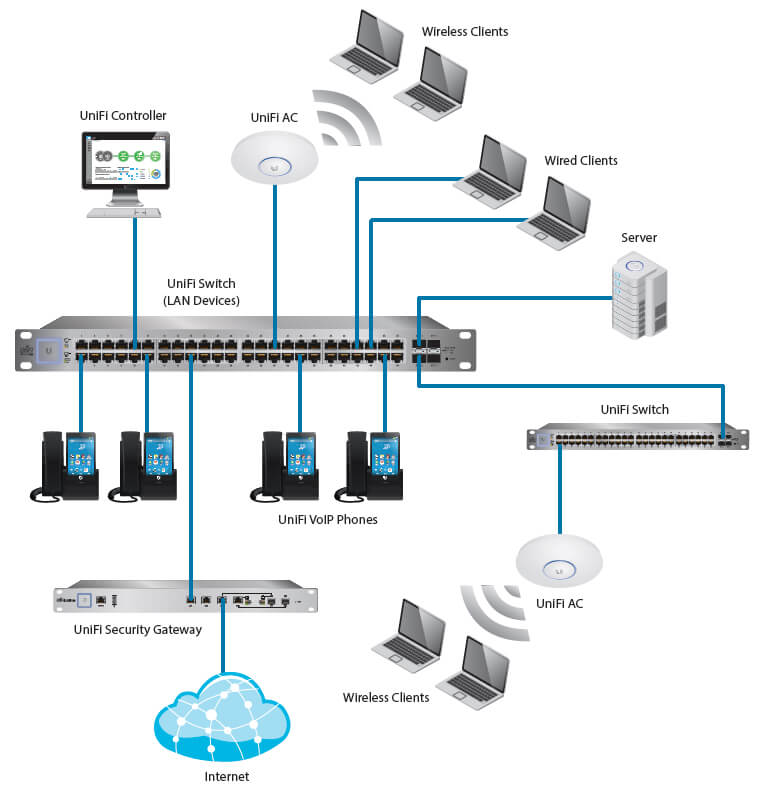

System Example

System Example

Product Views:

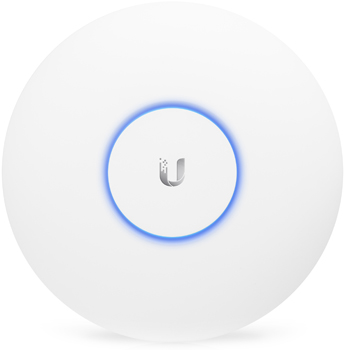

Front View
Front View

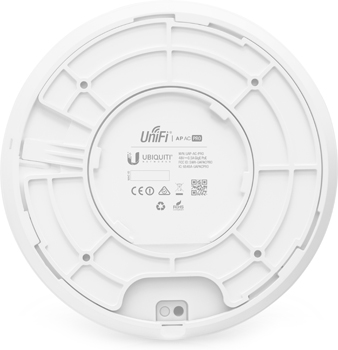

Rear View
Rear View

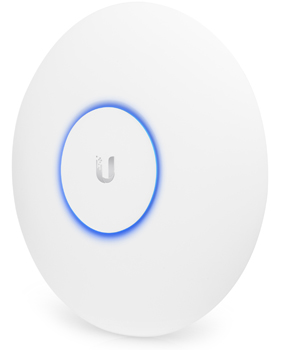

Angle View
Angle View

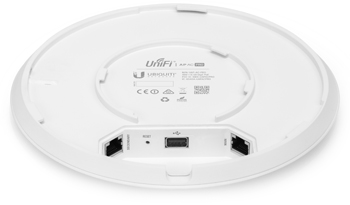

Port View
Port View

Specifications:

UniFi AP AC HD Specification
UAP-AC-HD
Dimensions 220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89")
Weight 700 g (1.54 lb)
With Mounting Kits 830 g (1.83 lb)
Networking Interface (2) 10/100/1000 Ethernet Ports
Buttons Reset
Power Method Passive Power over Ethernet (48V), 802.3at PoE+ Supported
Supported Voltage Range 44 to 57VDC
Power Supply 48V, 0.5A PoE Gigabit Adapter*
Power Save Supported
Maximum Power Consumption 17W
TX Power
2.4 GHz
5 GHz

6-25 dBm
6-25 dBm
Antennas
2.4 GHz
5 GHz

(2) Dual‐Port, Dual‐Polarity Antennas, 3 dBi each
(2) Dual‐Port, Dual‐Polarity Antennas, 4 dBi each
Wi-Fi Standards 802.11 a/b/g/n/ac/ac-wave2
Wireless Security WEP, WPA‐PSK, WPA‐Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to Four per Radio
Mounting Wall/Ceiling (Kits Included)
Operating Temperature ‐10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
* Only the single-pack of the UAP-AC-HD includes a PoE adapter.
Advanced Traffic Management
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 500+
Supported Data Rates (Mbps)
Standard Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 450 Mbps (MCS0 ‐ MCS23, HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 ‐ MCS9 NSS1/2/3/4, VHT 20/40/80)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Model Comparison:


  UAP AP AC Pro UAP AP AC HD
  UAP-AC-PRO UAP-AC-HD
Dimensions ∅196.7 x 35 mm ∅220 x 48.1 mm
Environment Indoor/Outdoor Indoor/Outdoor
2.4 GHz Radio Rate 450 Mbps 800 Mbps
5 GHz Radio Rate 1300 Mbps 1733 Mbps
PoE Mode 802.3af PoE/802.3at PoE+ 802.3at PoE+
Ports (2) 10/100/1000 Ethernet (2) 10/100/1000 Ethernet
Wi-Fi Users 200 Users 500+ Users
Price $149 $349

Technology:

Initial 802.11ac Wave 1 SU-MIMO (Single-User, Multiple Input, Multiple Output) technology allows an earlier-generation AP, such as the UniFi AC Pro AP, to communicate with only one client at a time.

802.11ac Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology allows a Wave 2 AP, such as the UniFi AC HD AP, to communicate with multiple clients at the same time – significantly increasing multi-user throughput and overall user experience.

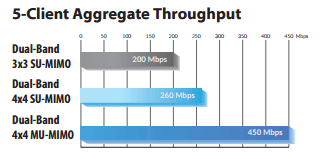

5 client aggregate throughput

The following describes a 5-client scenario:

MU-MIMO Assuming the same conditions, a Wave 2 AP provides up to 75% improvement* overall over a Wave 1 AP. This improvement increases wireless performance and/or serves more clients at the same performance level.

4x4 Spatial Streams At any single time, a Wave 2 AP can communicate with the following MU-MIMO clients:

  • four 1x1 clients
  • two 2x2 clients
  • one 2x2 client and two 1x1 clients
  • one 3x3 client and one 1x1 client

A 4x4 Wave 2 AP delivers up to 33% greater performance* than a Wave 1 AP that is 3x3 in both radio bands.

Real-World Performance The UniFi AC HD AP is the first UniFi 802.11ac Wave 2 AP. Combining the performance increases from MU-MIMO technology and the use of 4x4 spatial streams, the UniFi AC HD AP delivers up to 125% greater performance* than a typical Wave 1 AP.

Client Compatibility For optimal performance, use MU-MIMO clients. SU-MIMO clients will also benefit and gain up to 10-20% greater performance when used with the UniFi AC HD AP.

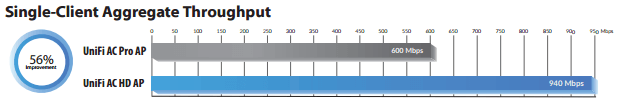

single client aggregate throughput

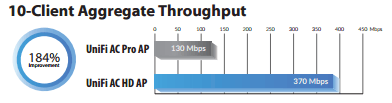

10 client aggregate throughput

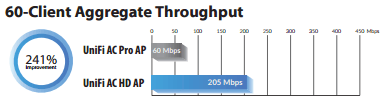

60 client aggregate throughput

802.11ac Wave 1 SU-MIMO

Su-mimo wave 1

SU-MIMO: A Wave 1 AP communicates with one client at a time

802.11ac Wave 2 MU-MIMO

Mu-mimo 1x1

MU-MIMO with 1x1 clients: The UniFi AC HD AP communicates with four 1x1 clients at a time.

Mu-mimo 2x2x1

MU-MIMO with 2x2 and 1x1 clients: The UniFi AC HD AP communicates with one 2x2 client and two 1x1 clients at a time.

Mu-mimo 3x3x1

MU-MIMO with 3x3 and 1x1 clients: The UniFi AC HD AP communicates with one 3x3 client and one 1x1 client at a time.

Model Summary

UAP-AC-HD
Environment Indoor or Outdoor (Covered)
Simultaneous Dual-Band
2.4 GHz Radio Rate 800 Mbps
2.4 GHz MIMO 4x4
5 GHz Radio Rate 1733 Mbps
5 GHz MIMO 4x4
Secondary Ethernet Port
PoE Mode 802.3at PoE+
Ceiling Mount
Wall Mount
Wireless Uplink

Hardware Overview

Deploy the UniFi AC HD AP in high-density environments requiring maximum wireless performance. The UniFi AC HD AP features simultaneous, dual-band, 4x4 MU-MIMO technology and convenient 802.3at PoE+ compatibility. Available in single- and five-packs* .

Easy Mounting Its sleek design seamlessly integrates into any environment (all accessories included) and is compatible with existing UAP-AC-PRO mounts.

LED Unique LED provisioning ring provides administrator location tracking and alerts for each device.

Dual Gigabit Ethernet The UniFi AC HD AP offers a secondary port available for bridging.

  • Five-packs do not ship with PoE adapters; we recommend powering the UniFi APs with the UniFi PoE Switch instead.

Superior Processing Power The UniFi AC HD AP is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.

Power over Ethernet (PoE) Includes PoE functionality. Each single-pack includes a PoE adapter.

PoE Standard The UniFi AC HD AP is compatible with an 802.3at PoE+ compliant switch. We recommend powering your UniFi devices with a UniFi PoE Switch (sold separately).

UniFi PoE Switch Available in 8, 16, 24, and 48-port versions with multiple power output options, the UniFi PoE Switch conveniently offers auto-sensing IEEE 802.3af PoE/802.3at PoE+ and configurable 24V passive PoE.

UAP AC HD Install 1

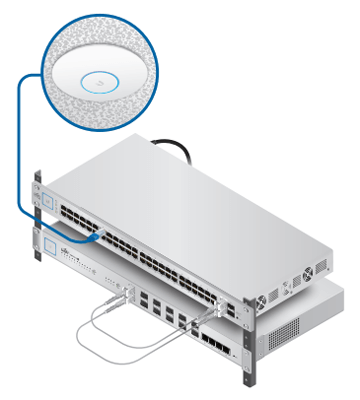

uap ac hd install 2

Documentation:

Download the Ubiquiti UniFi Access Point AC Series Datasheet (PDF).
