Ubiquiti EdgeRouter
Advanced 8-Port Network Router

Overview:

The EdgeRouter™ offers 2 million packets per second over its eight independent, Gigabit routing ports.

Advanced Routing Technology for the Masses

Introducing the EdgeRouter from Ubiquiti Networks, part of the EdgeMAX platform. EdgeRouters combine carrier-class reliability with enterprise-level features in a compact and affordable unit. Available in a rackmountable form factor with eight functional ports, the EdgeRouter Pro and 8-Port EdgeRouter models are capable of routing up to 2 million+ packets per second. Powered by a proprietary and intuitive graphical interface, EdgeOS, EdgeRouters can easily be configured for routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.

• (8) Gigabit routing ports
• 2 million packets per second for 64-byte packets
• 8 Gbps for packets 512 bytes or larger in size
• Rackmountable
• Power supply: 100-240VAC 12VDC 1A US-style plug

Manage Your Network

• DHCP Server
  Set up multiple DHCP servers to assign IP ranges in different subnets on the different interfaces. Easily control dynamic and static IP addressing for your network devices.
• Monitoring Tools
  Conveniently track network activity and devices from tools such as Ping, Trace, Discover, Packet Capture, and Log Monitor.
• User Accounts
  Manage access to the EdgeRouter Lite using unique administrator and operator accounts.

Secure Your Network

• Firewall Policies
  Organize the rules you apply in the order you specify.
• Firewall Groups
  Apply the policies to groups filtered by IP address, network address, or port number.
• NAT Rules
  The EdgeRouter Lite changes packet addressing based on your customized source and destination NAT rules.

Direct Traffic Flow

• Interfaces
  Each Gigabit port functions as an independent interface. You can also configure Virtual Local Area Network (VLAN) interfaces to meet your network segmentation requirements.
• Routing
  Configure static routes and dynamic routing protocols to effectively manage the routes used by the EdgeRouter.
  With these capabilities and more, the EdgeRouter provides the centralized control you need to optimize the performance and reliability of your network.

Features:

EdgeOS - Advanced UI

The intuitive, graphical user interface is easy to learn and makes routing features simple to configure and monitor. It includes an integrated Command-Line Interface (CLI) for convenient access to advanced functions.

Deployment:

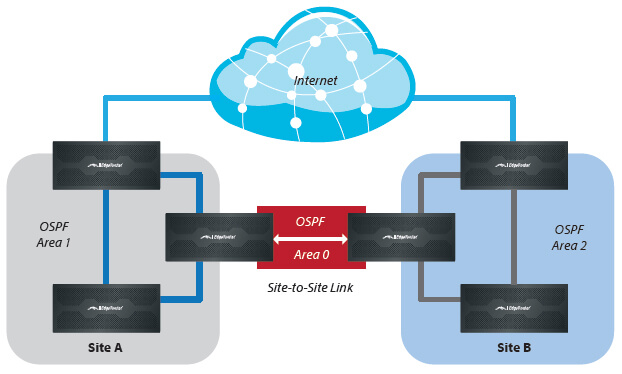

Typical Service Provider Deployment

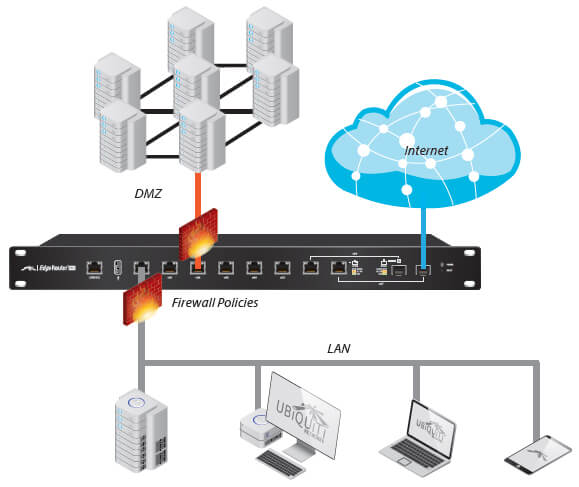

Example of Enterprise Deployment with SFP Connection to the Internet

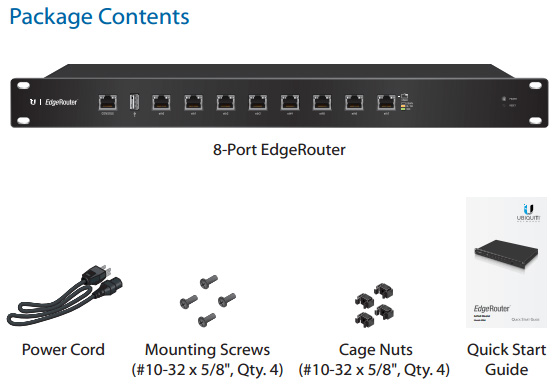

Product Views:

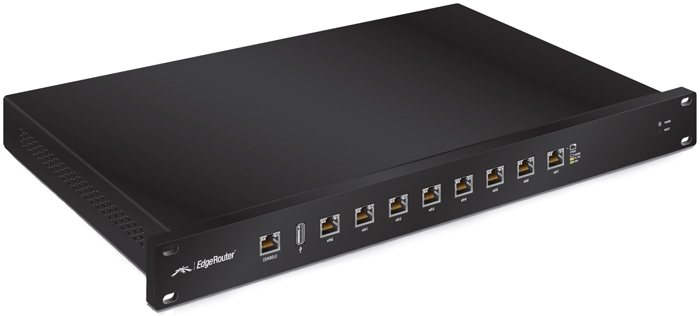

Angle View

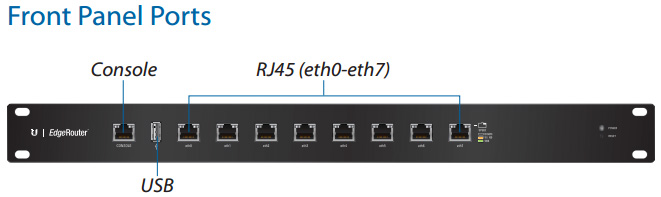

Front View

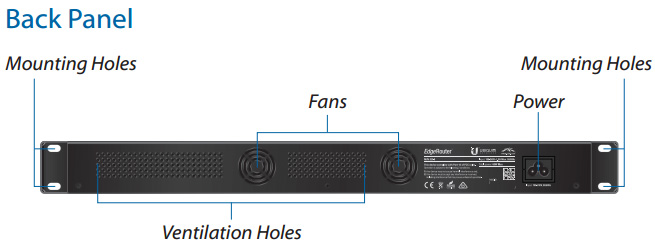

Rear View

Ports/LED Zoom-In View

Specifications:

EdgeRouter Specification
Dimensions	484 x 164 x 44 mm (19.06 x 6.46 x 1.73 in)
Weight	2.3 kg (5.07 lb)
Power	35 W
Power Method	Internal AC/DC Power Adapter, 60 W (24V, 2.5A)
Power Supply	110 - 240VAC
Button	Reset
LED	Power
Processor	Dual-Core 800 MHz, MIPS64 with Hardware Acceleration for Packet Processing
System Memory	2 GB DDR3 RAM
Onboard Flash Storage	4 GB
Certifications	CE, FCC, IC
Wall-Mount	Yes
Operating Temperature	-10 to 45°C (14 to 113°F)
Operating Humidity	10 - 90% Non-Condensing
Layer 3 Forwarding Performance
Packet Size: 64 Bytes	2,000,000 pps
Packet Size: 512 Bytes or Larger	8 Gbps (Line Rate)
LEDs Per Port
Serial Console Port	Power
Data Ports	Speed/Link/Activity
Networking Interfaces
Serial Console Port	(1) RJ45 Serial Port
Data Ports	(8) 10/100/1000 Ethernet Ports

Software:

EdgeMAX Software Platform

EdgeOS provides an intuitive, easy-to-use graphical user interface that makes router features simple to configure and monitor. It even comes with an integrated command-line interface (CLI) right in the browser, allowing access to all the advanced functions of the router.

EdgeOS Specifications
Interface/Encapsulation	Ethernet 802.1q VLAN PPPoE GRE IP in IP Bridging Bonding (802.3ad)
Addressing	Static IPv4/IPv6 Addressing DHCP/DHCPv6
Routing	Static Routes OSPF/OSPFv3 RIP/RIPng BGP (with IPv6 Support) IGMP Proxy
Security	ACL-Based Firewall Zone-Based Firewall NAT
VPN	IPSec Site-to-Site and Remote Access OpenVPN Site-to-Site and Remote Access PPTP Remote Access L2TP Remote Access PPTP Client
Services	DHCP/DHCPv6 Server DHCP/DHCPv6 Relay Dynamic DNS DNS Forwarding VRRP RADIUS Client Web Caching
QoS	FIFO Stochastic Fairness Queueing Random Early Detection Token Bucket Filter Deficit Round Robin Hierarchical Token Bucket Ingress Policing
Management	Web UI CLI (Console, SSH, Telnet) SNMP NetFlow LLDP NTP UBNT Discovery Protocol Logging

Miscellaneous:

Protect your networks from the most brutal environments with Ubiquiti's industrialgrade shielded ethernet cable, TOUGHCable.

• Increase Performance - Dramatically improve your ethernet link states, speeds, and overall performance with Ubiquiti TOUGHCables.
• Extreme Weatherproof - TOUGHCables have been built to perform even in the harshest weather and environments.
• ESD Damage Protection - Protect your networks from devastating electrostatic discharge (ESD) attacks.
• Extended Cable Support - TOUGHCables have been developed to have increased power handling performance for extended cable run lengths.

Bulletproof your networks

TOUGHCable is currently available in two versions: PRO Shielding Protection and CARRIER Shielding Protection.

Additional Information:

• 24 AWG copper conductor pairs
• 26 AWG integrated ESD drain wire to prevent ESD attacks and damage
• PE outdoor-rated, weatherproof jacket
• Multi-layered shielding
• Available in lengths of 1000 ft (304.8 m)

TOUGHCable Connectors

Specifically designed for use with Ubiquiti TOUGHCable, TOUGHCable Connectors protect against ESD attacks and Ethernet hardware damage, while allowing rapid field deployment without soldering. The standard TOUGHCable Connectors are available in a box of 100, while the TC-GND versions include ground wires and are available in a box of 20.

ESD attacks are the leading cause for device failures. The diagram below illustrates the areas vulnerable to ESD attacks in a network.	By using a grounded Ubiquiti Power over Ethernet (PoE) Adapter along with Ubiquiti TOUGHCable and TOUGHCable Connectors, you can effectively protect against ESD attacks.

Documentation:

Download the Ubiquiti EdgeMAX EdgeRouter Datasheet (PDF).
