Ubiquiti LiteBeam 5AC AP
2x2 MIMO airMAX ac Sector AP

Ubiquiti Products
LiteBeam 5AC Series
LITEBEAM 5AC 16DBI 120DEG
#LAP-120-US
Our Price: $89.00
LITEBEAM 5AC 17DBI 90 DEG GPS
#LAP-GPS-US
Get a Quote!

Click here to jump to more pricing!

Overview:

The LiteAP AC delivers up to 450+ Mbps real TCP/IP throughput and features an efficient form factor.

Quick Installation Minimal fasteners simplify installation. No tools are needed; only a single wrench is required for pole-mounting.

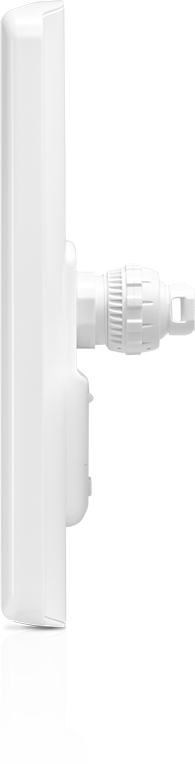

Versatile Mounting The ball-joint mount of the LiteAP AC provides adjustment flexibility for versatile mounting options.

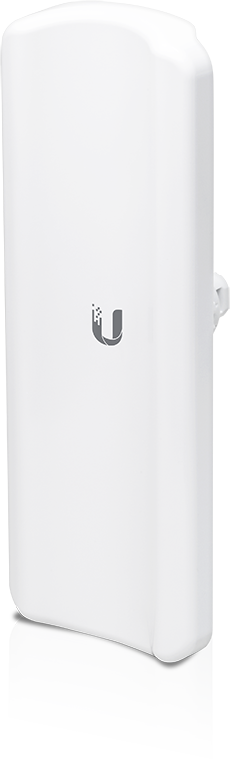

Efficient Design The LiteAP AC features a lightweight antenna with an integrated radio in a sleek design.

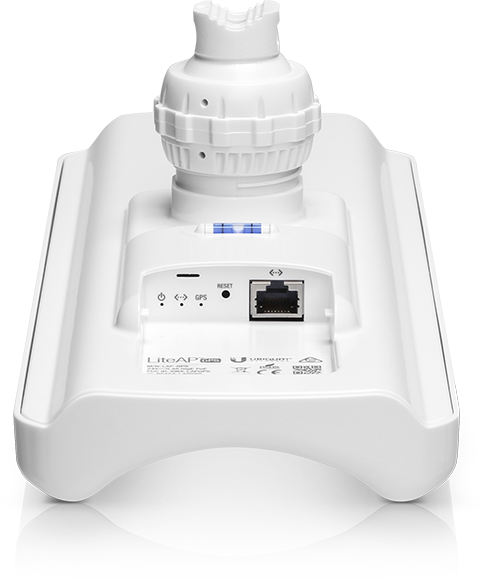

Gigabit Ethernet The LiteAP AC delivers high throughput over its wired connection.

GPS Sync Support

Precise GPS frame synchronization enables co-located LAP-GPS devices to transmit and receive data without interfering with each other, allowing for better frequency reuse and increased network stability.

Mobile App Support

The LAP-GPS integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Accessing airOS via Wi-Fi

The Ubiquiti Network Management System (UNMS™) app* provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store® (iOS) or Google Play™ (Android™). UNMS allows you to set up, configure, and manage your device, and offers various configuration options once you're connected or logged in.

* UNMS app support for the LAP-120 requires the U-Installer, sold separately.

Features:

airMAX ac Sector Coverage

The LiteAP ac features a 2x2 MIMO antenna and communicates with multiple airMAX ac CPEs within a 120° coverage area.

GPS Synchronization

LiteAPTM GPS supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.

Now with airOS®8

airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Lightweight and Sleek Design

The LiteAP ac features a lightweight antenna with an integrated radio in a sleek and highly efficient design.

Installation Flexibility

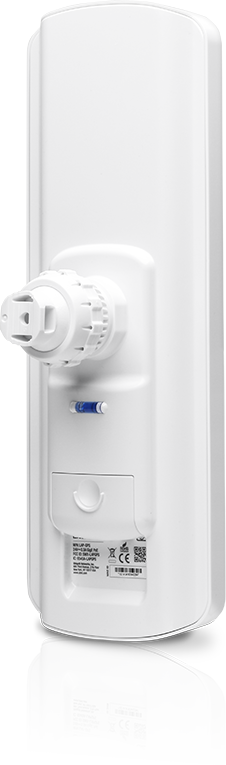

Featuring the freedom of three-axis alignment, the LiteAP ac fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.

Specifications:

LAP-120 LAP-GPS
Dimensions
(Mount Not Included)
452.3 x 78.7 x 54.4 mm
(17.81 x 3.10 x 2.14")
360.98 x 124.57 x 71.28 mm
(14.21 x 4.90 x 2.81")
Weight (No Mount) 420 g (14.82 oz) 752 g (1.66 lb)
Mounting Kit Pole Mounting Kit (Included)
Networking Interface (1) 10/100/1000 Ethernet Port
Memory 64 MB DDR2 64 MB
Max. Power Consumption 7W 7.1W
Max. TX Power 25 dBm
Antenna Gain 16 dBi 17 dBi
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included) 24V, 0.3A PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Processor Specs Atheros MIPS 74Kc, 533 MHz
Shock and Vibration ETSI300-019-1.4
ETSI Specification EN 302 326 DN2
ESD/EMP Protection ± 24 kV Contact / Air
RoHS Compliance Yes
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications FCC, IC, CE

Documentation:

Download the Ubiquiti LiteBeam Datasheet (PDF).
