Ubiquiti UniFi U7 Pro
Ceiling-Mounted Tri-Band Wi-Fi 7 Access Point

Overview:

Experience fast and reliable wireless connections by expanding your network with the UniFi U7 Pro Tri-Band Wi-Fi 7 Access Point from Ubiquiti Networks. Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments. Supporting over 300 concurrent connections, this Wi-Fi 7 (802.11be) access point mounts onto a wall or ceiling to provide up to 9335 Mb/s transfer speeds over the 2.4 GHz, 5 GHz, and 6 GHz bands. You can also isolate guest traffic to ensure optimal security and speed.

Connect the 2.5G Ethernet port to a PoE+ compatible switch to transfer power and data over a single cable. Use the UniFi Network application to set up, configure, and manage your device. Your wireless connections are protected by WPA3 encryption.

UniFi Network Application Features

• Manage networks from a single interface
• Intuitive configuration options and robust device control and monitoring
• Remote device firmware updates
• Manage network users and guests
• Personalize the design, architecture, and privacy of guest hotspots

Scalable Enterprise Wi-Fi Management

UniFi is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. UniFi Access Points (APs) have a refined industrial design and can be easily installed using the included mounting hardware.

Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance. Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.

With Ubiquiti's Zero Handoff Roaming, students keep their devices seamessly connected as they move from the classroom through the plaza, to a cafe and then home to the dormitory.

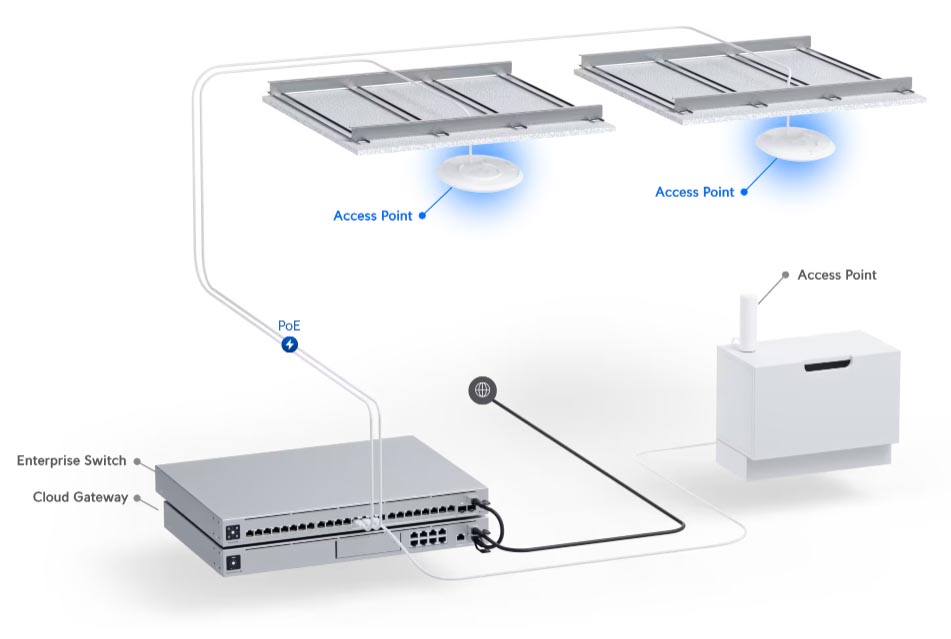

Deployment:

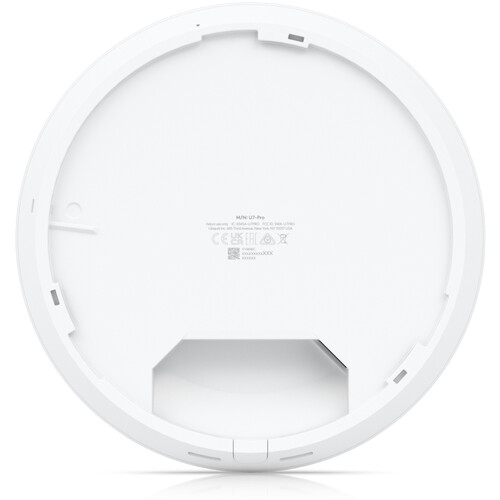

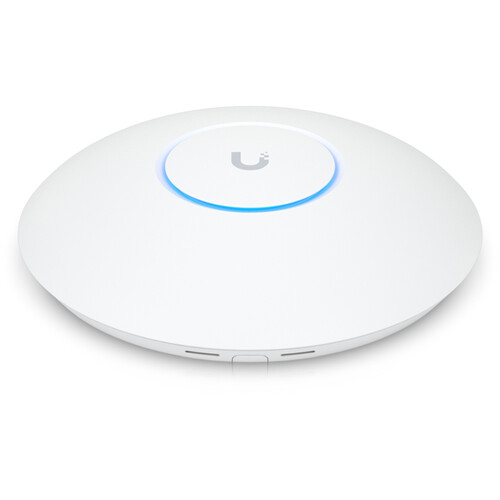

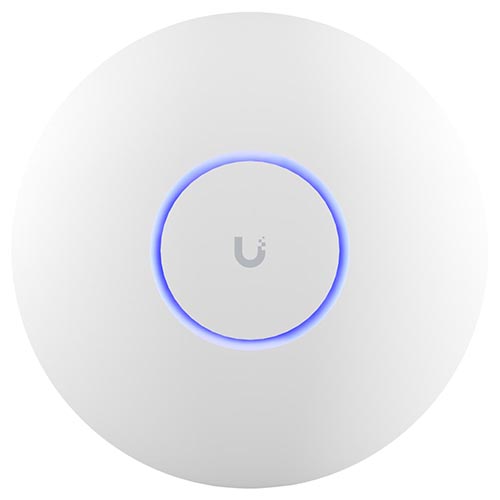

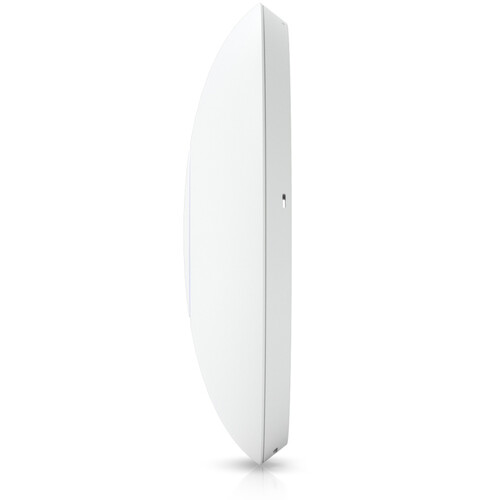

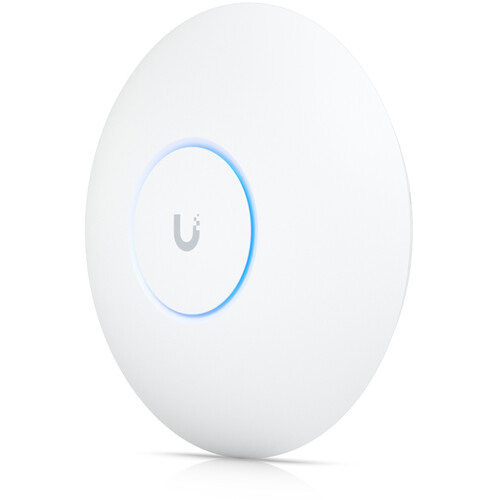

Product Views:

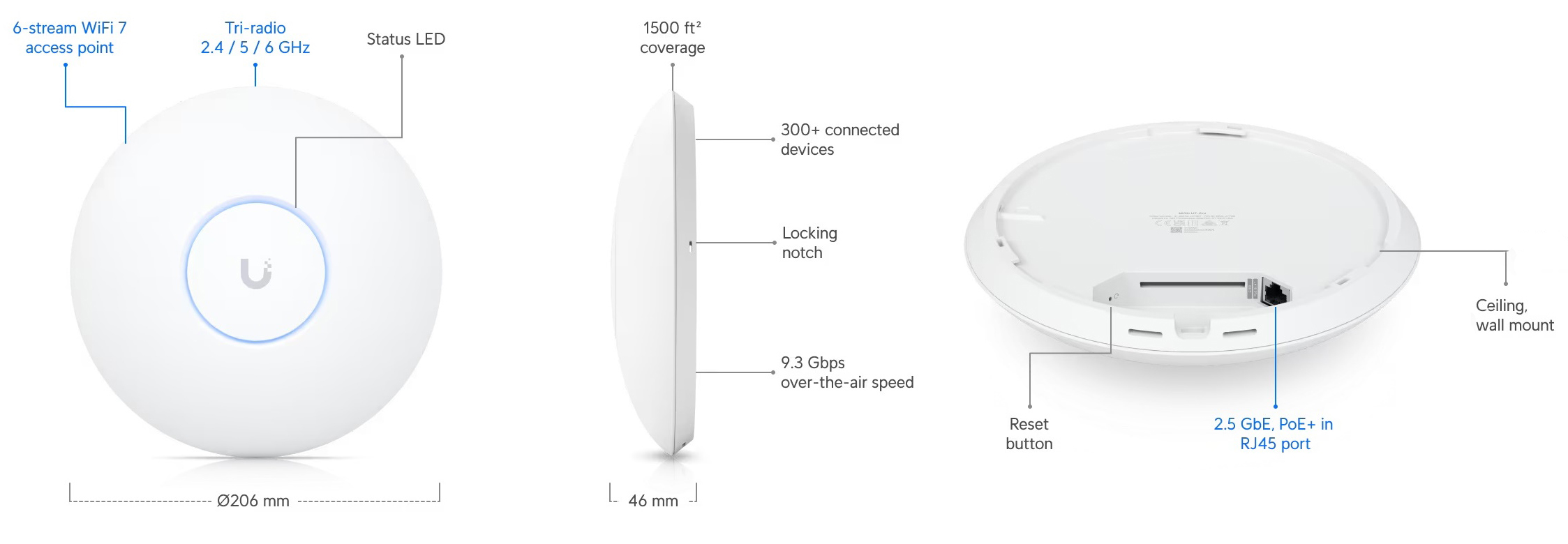

Specifications:

UniFi U7 Pro Specification
Mechanical
Dimensions	Ø206 x 46 mm (Ø8.1 x 1.8")
Weight	680 g (1.5 lb)
Enclosure material	Polycarbonate, metal
Mount material	Stainless steel (SUS304), galvanized steel (SGCC)
Hardware

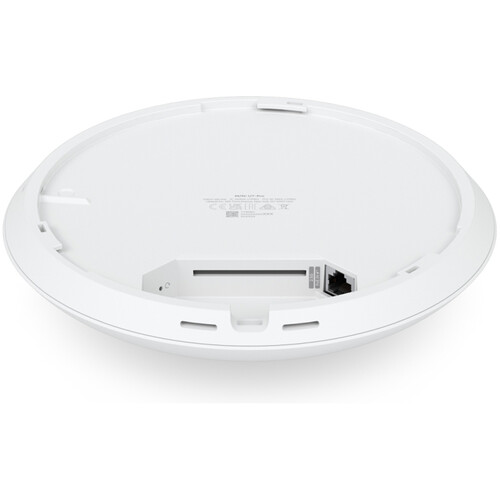

Networking interface	(1) 1/2.5 GbE RJ45 port
Management interface	Ethernet
Power method	PoE+
Power supply	UniFi PoE switch
Supported voltage range	44—57V DC
Maximum power consumption	21W
Max TX Power	2.4 GHz: 22 dBm 5 GHz: 26 dBm 6 GHz: 23 dBm
MIMO	2.4 GHz: 2 x 2 5 GHz: 2 x 2 6 GHz: 2 x 2
Throughput rate	2.4 GHz: 688 Mbps 5 GHz: 2882 Mbps 6 GHz: 5765 Mbps
Antenna gain	2.4 GHz: 4 dBi 5 GHz: 6 dBi 6 GHz: 5.8 dBi
LEDs	White/blue
Button	Factory reset

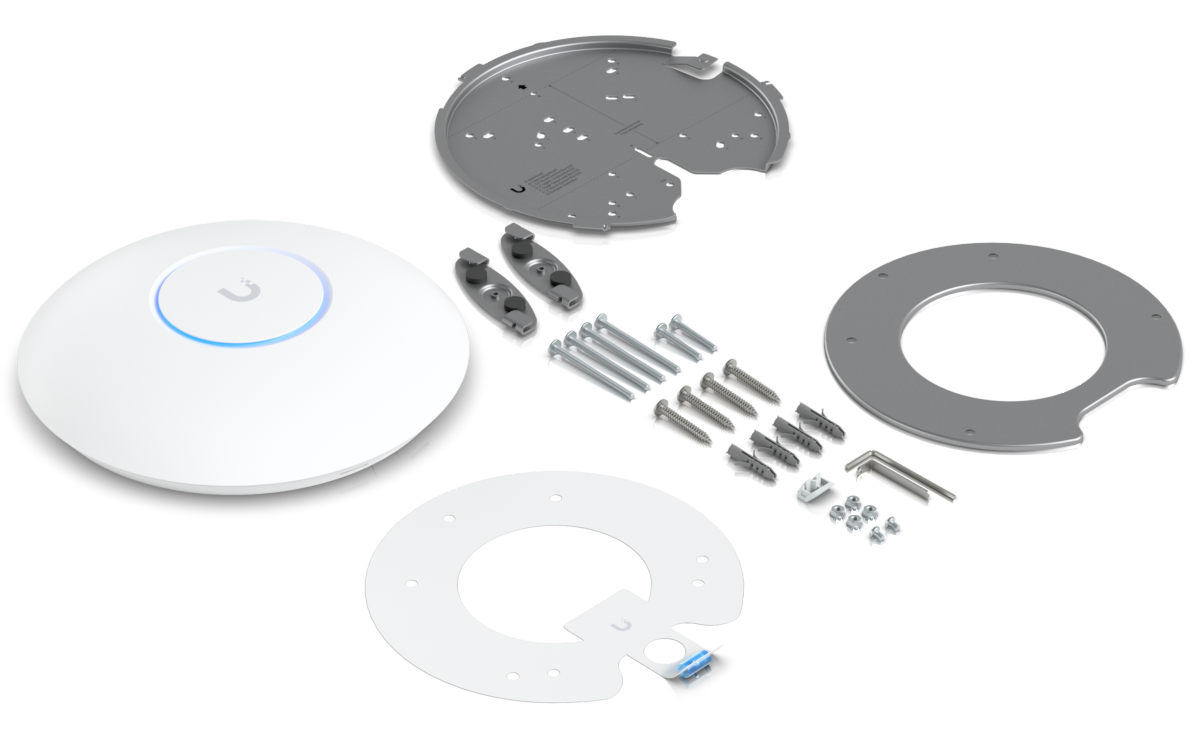

Mounting	Wall/ceiling (Included)
Ambient Operating Temperature	-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Software
WiFi standards	802.11a/b/g/n/ac/ax/be
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	300+
Supported Data Rates
Standards	Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)	7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi Network	Version 8.0.26 and later
UniFi OS	Version 3.2 and later

*Note: Multi-Packs do not ship with PoE adapters; we recommend powering the UniFi APs with the UniFi Switch instead.

Documentation:

Download the Ubiquiti UniFi U7 Pro Access Point Datasheet (PDF).
