10G Aggregation Switch for Enterprise Networks
Build and expand your network with Ubiquiti Networks® UniFi® Switch 16 XG, part of the UniFi Enterprise System. The US-16-XG is a fully managed, 16-port, 10G fiber switch that enhances network capacity by providing high-bandwidth aggregation connectivity to multiple switches in your network.
The US-16-XG offers an extensive suite of advanced Layer-2 switching features and protocols.
UniFi Switch 16 XG
- (12) 1G/10G SFP+ Ports
- (4) 1G/10G RJ45 Ports
- (1) RJ45 Serial Console Port
- Non-Blocking Throughput: 160 Gbps
- Switching Capacity: 320 Gbps
- Forwarding Rate: 238.10 Mpps
- Rack Mountable with Mount Brackets (Included)
- DC Input Option (Redundant or Stand-Alone)
Switching Performance
The US-16-XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
The total non-blocking throughput is up to 160 Gbps.
10G High-Capacity Links
The US-16-XG offers maximum performance and low latency as an aggregation switch.
For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the US-16-XG offers four RJ45 ports that support 10GBASE-T, the standard for 10 Gbps connections using Cat6 (or higher) cabling and RJ45 connectors.
Features:

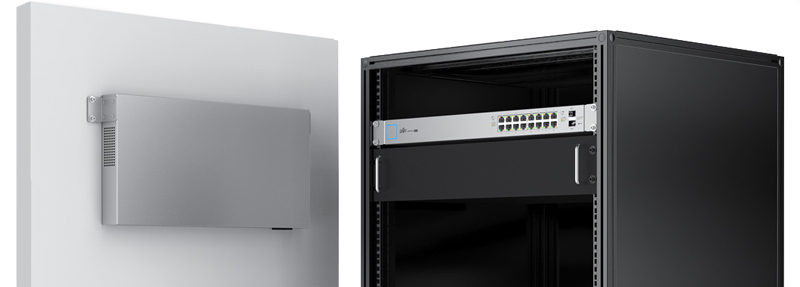

Versatile Mounting Options
The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.

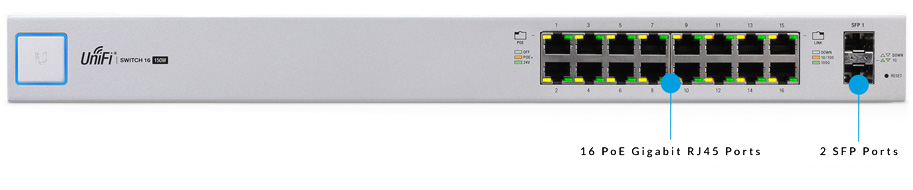

Versatile Port Configuration
Sixteen Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

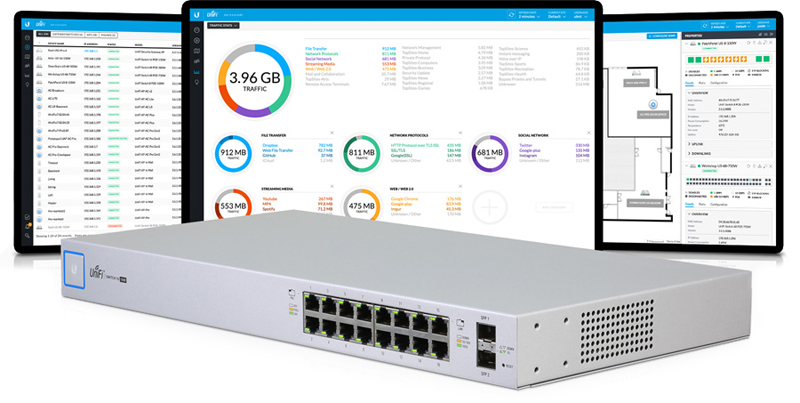

Integration with UniFi Controller
The UniFi Switch integrates with the UniFi Controller software for centralized management of your UniFi devices.

Advanced Enterprise Switching
The UniFi Switch supports 802.1X authentication, dynamic and static VLAN tagging, port isolation, storm control, and guest control.

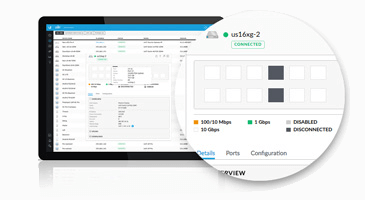

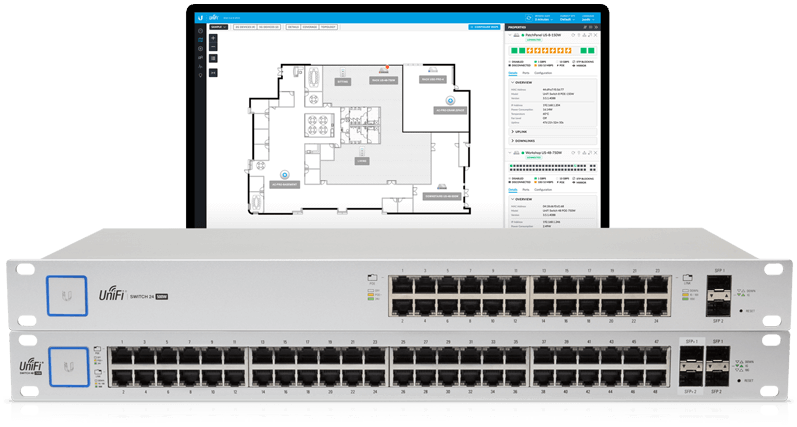

Multi-Site Management
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

10G High-Capacity Links
The US-16-XG offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP+ ports. For CAT 6/5e cable connectivity, the US-16-XG offers four 10G RJ45 ports.

Seamless Integration
The UniFi® Switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations — all controlled from a single interface.
Product Views:

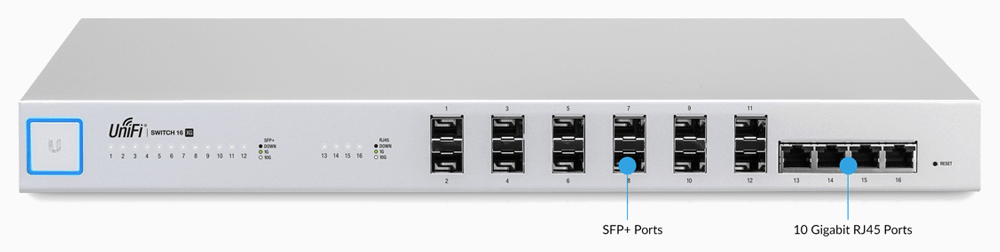

Front View

Rear View

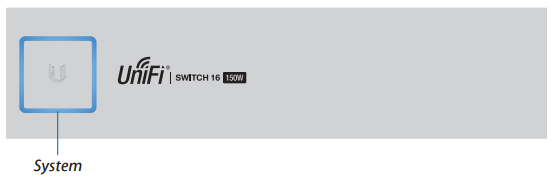

Front Panel System LED

Deployment:

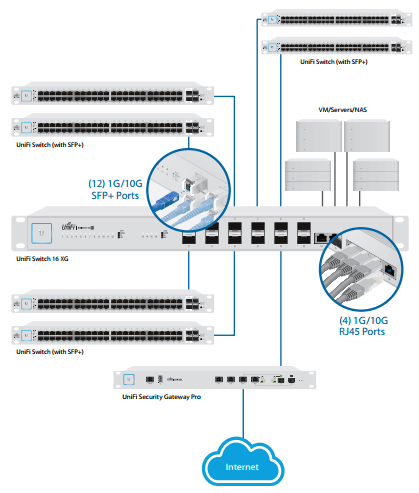

Deployment Example

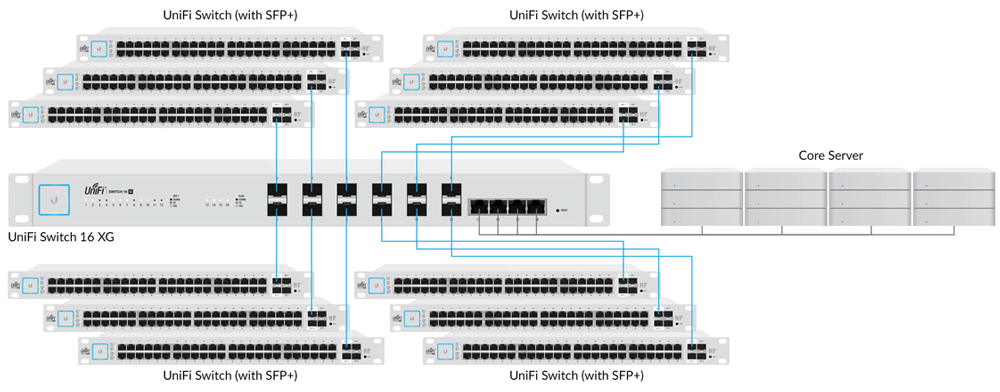

10 Gbps Deployment Example
Supports 12 x US-48, 10 Gbps symmetric (40 Gbps aggregate) uplink/downlink and 4 x 10 Gbps Ethernet for uplink to another US-16-XG or core server.

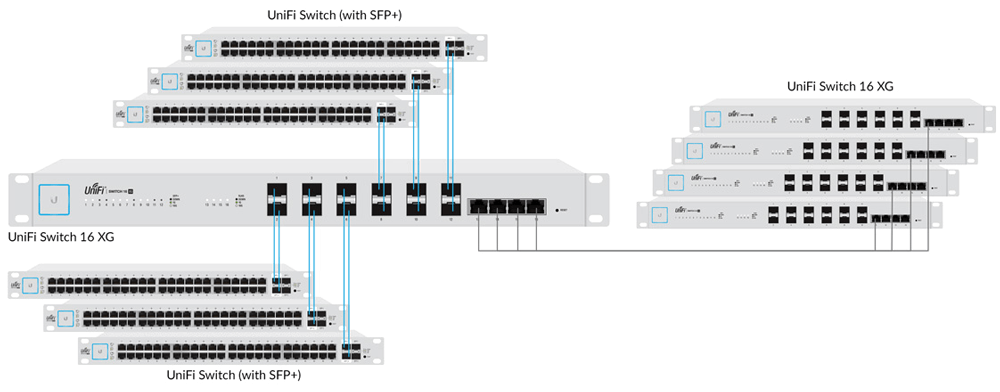

20 Gbps Deployment Example
Supports 6x US-48, 20 Gbps symmetric (40 Gbps aggregate) uplink/downlink and 4 x 10 Gbps Ethernet for uplink to another US-16-XG or core server.
Specifications:
US‐16‐XG |
Dimensions |
443 x 221 x 43 mm (17.44 x 8.70 x 1.69") |
Weight |
Without Mount Brackets With Mount Brackets |
2.62 kg (5.78 lb) 2.71 kg (5.97 lb) |
Enclosure Characteristics |
SGCC Steel |
Total Non‐Blocking Throughput |
160 Gbps |
Switching Capacity |
320 Gbps |
Forwarding Rate |
238.10 Mpps |
Max. DC Power Consumption |
36W (Excludes SFP/SFP+ Modules) |
Power Method |
AC DC |
100‐240VAC/50‐60 Hz, Universal Input DC 56W, 25 to 16V, with 2.5 mm |
DC Power Inline Connector |
Supported Voltage Range |
100 to 240VAC 25 to 16VDC |
Power Supply |
AC/DC, Internal, 56W DC |
LEDs Per Data Port |
Speed/Link/Activity |
Networking Interfaces |
(12) 1/10 Gbps SFP+ Ethernet Ports |
(4) 1/10 Gbps RJ45 Ethernet Ports |
Management Interface |
(1) RJ45 Serial Port Out‐of‐Band, Ethernet Ports In‐Band |
Certifications |
CE, FCC, IC |
Rack Mount |
Yes, 1U High |
ESD/EMP Protection |
Air: ± 24 kV, Contact: ± 24 kV |
Operating Temperature |
‐5 to 40° C (23 to 104° F) |
Operating Humidity |
5 to 95% Noncondensing |
Shock and Vibration |
ETSI300‐019‐1.4 Standard |
Software:


Advanced Network Switching
Managed by the UniFi Controller software, the UniFi Switch delivers powerful performance, intelligent switching, and PoE+ support for your enterprise networks.
UniFi Controller
Designed for convenient management, the UniFi Controller software allows admins to configure and monitor the UniFi Switch and other UniFi devices using a graphical user interface. You can download it from www.ubnt.com at no extra charge – there is no separate software, licensing, or support fee.
Multi-Site Management
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Switch Configuration
You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
- Operation mode (switching, mirroring, or aggregate) per port
- Network/VLAN configuration
- Jumbo frame and flow control services
- Network settings
- Storm control setting per port
- Spanning tree configuration
- 802.1x control and RADIUS VLAN
- Debug terminal option for command-line interface

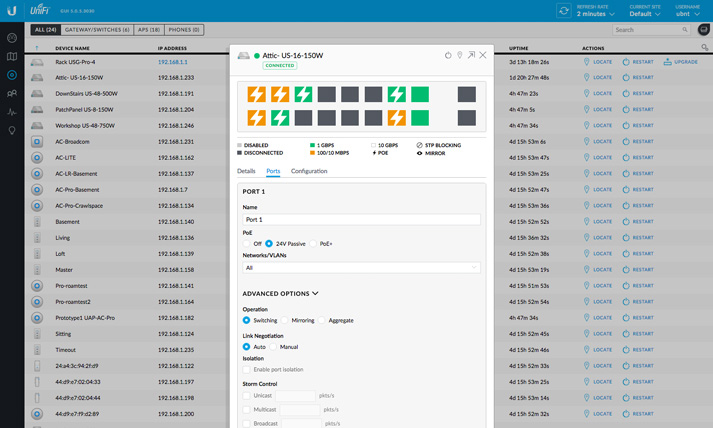

Switch Port Status
You can also view status information for each port:
- Connection speed and duplex mode
- TX/RX data rates
- Network/VLAN setting

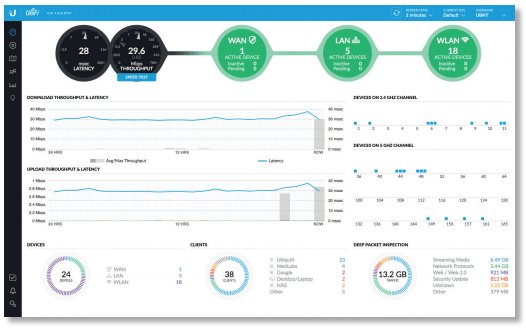

Dashboard
The Dashboard tab provides a visual representation of your network’s status. Basic information is provided for each network segment.

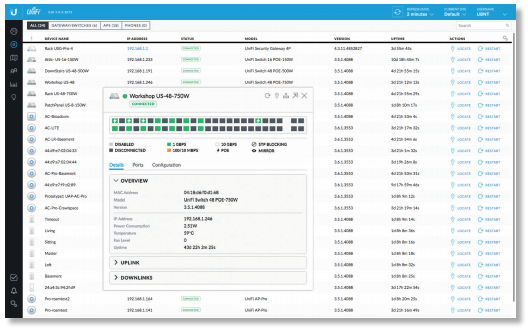

Device Configuration
The Devices screen displays the UniFi devices discovered by the UniFi Controller. You can access each managed device for device details and configuration.
Miscellaneous:


Protect your networks from the most brutal environments with Ubiquiti's industrialgrade shielded ethernet cable, TOUGHCable.
- Increase Performance - Dramatically improve your ethernet link states, speeds, and overall performance with Ubiquiti TOUGHCables.
- Extreme Weatherproof - TOUGHCables have been built to perform even in the harshest weather and environments.
- ESD Damage Protection - Protect your networks from devastating electrostatic discharge (ESD) attacks.
- Extended Cable Support - TOUGHCables have been developed to have increased power handling performance for extended cable run lengths.
Bulletproof your networks
TOUGHCable is currently available in two versions: PRO Shielding Protection and CARRIER Shielding Protection.
TOUGHCable PRO is a Category 5e, outdoor, carrier-class shielded cable with an integrated ESD drain wire.

TOUGHCable CARRIER is a Category 6, outdoor, carrier-class shielded cable that features an integrated ESD drain wire, anti-crosstalk divider, and secondary shielding. It is rated to provide optimal performance on Gigabit Ethernet networks.

Additional Information:
- 24 AWG copper conductor pairs
- 26 AWG integrated ESD drain wire to prevent ESD attacks and damage
- PE outdoor-rated, weatherproof jacket
- Multi-layered shielding
- Available in lengths of 1000 ft (304.8 m)
TOUGHCable Connectors
Specifically designed for use with Ubiquiti TOUGHCable, TOUGHCable Connectors protect against ESD attacks and Ethernet hardware damage, while allowing rapid field deployment without soldering. The standard TOUGHCable Connectors are available in a box of 100, while the TC-GND versions include ground wires and are available in a box of 20.
ESD attacks are the leading cause for device failures. The diagram below illustrates the areas vulnerable to ESD attacks in a network. |
By using a grounded Ubiquiti Power over Ethernet (PoE) Adapter along with Ubiquiti TOUGHCable and TOUGHCable Connectors, you can effectively protect against ESD attacks. |
 |
