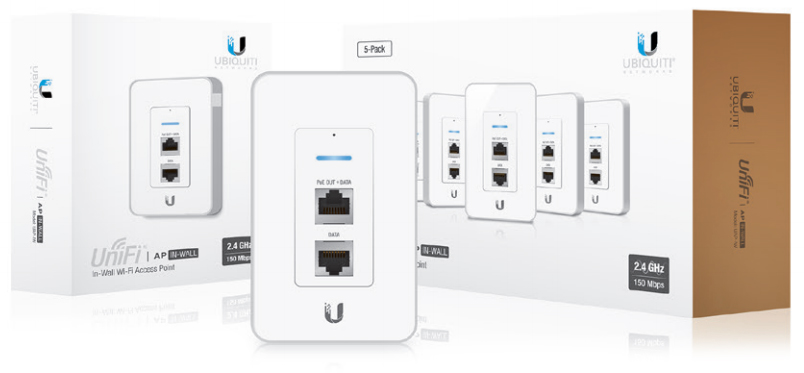

Ubiquiti UniFi Access Point In-Wall

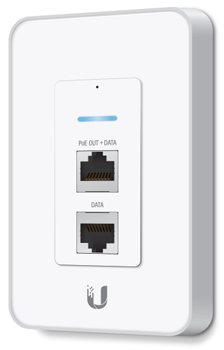

In-Wall Wi-Fi Access Point

Overview:

The UniFi In-Wall Wi-Fi AP is ideal for retrofitting an existing, in-wall, wired Ethernet jack to a wireless access point.

Scalable and Unified Enterprise WiFi Management

The UniFi Enterprise WiFi System is a scalable enterprise access point solution designed to be easily deployed and managed. UniFi Access Point indoor models have a sleek design and can be easily mounted to a ceiling tile or wall using the included mounting hardware. UniFi Access Point outdoor models have a form factor built to last outdoors.

The UniFi Enterprise WiFi System includes the UniFi Controller software. The software installs on any PC or Mac within the network and is easily accessible through any standard Web browser. Using the UniFi Controller software, an Enterprise WiFi network can be instantly configured and administered without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated.

Example of Zero Handoff Roaming on a University Campus

With Ubiquiti's Zero Handoff Roaming, students keep their devices seamessly connected as they move from the classroom through the plaza, to a cafe and then home to the dormitory.

Features:

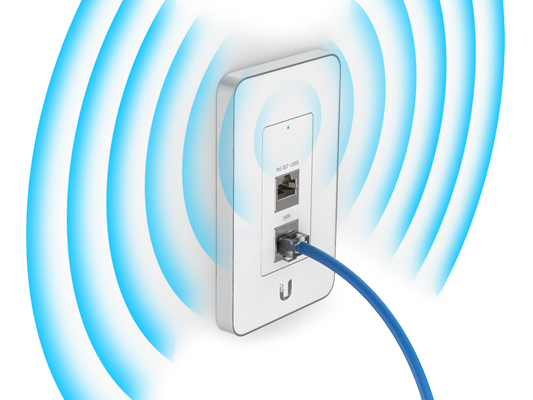

Instant Deployment

Transform any existing Ethernet outlet into a versatile UniFi AP – no additional wiring needed.

Easy Installation

Upgrade any single-gang Ethernet outlet to the UniFi In-Wall Wi-Fi AP.

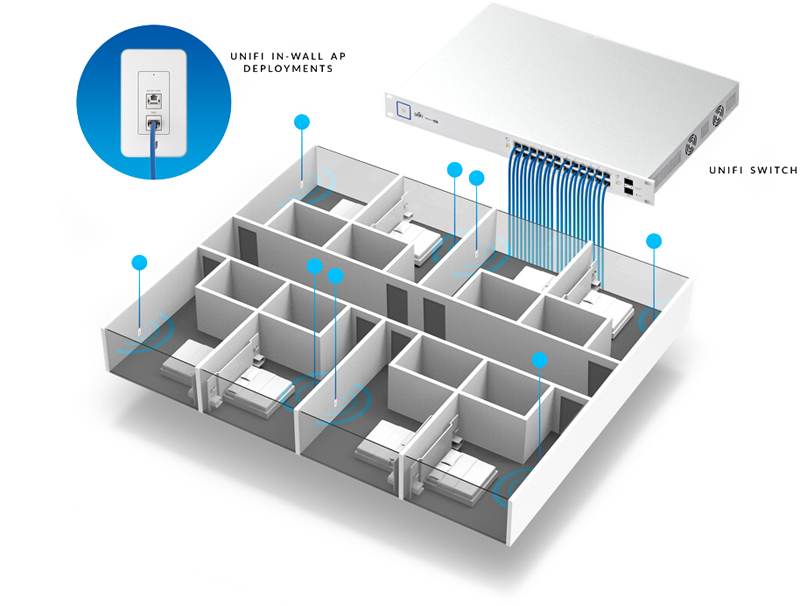

Power over Ethernet

The UniFi In-Wall Wi-Fi AP works with the UniFi Switch (24 and 48 port versions available).

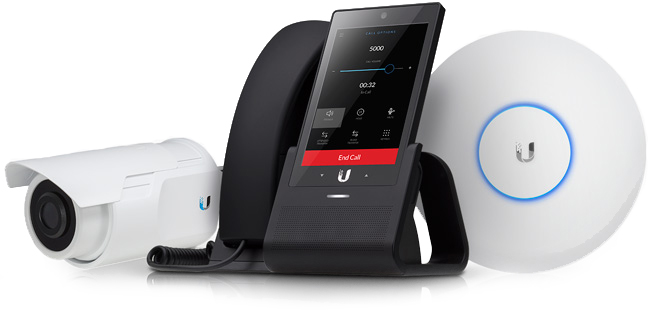

Versatile Data and PoE Output

An integrated PoE passthrough port conveniently connects and powers a security camera, VoIP phone, or high-end AP.

Advanced Software Features

Save money and save time
Unlike traditional enterprise Wi-Fi systems that utilize a hardware controller, UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-premise PC, Mac, or Linux machine; in a private cloud; or using a public cloud service.

Powerful Hardware
The UniFi Access Points feature Wi-Fi 802.11n MIMO technology for superior performance in the 2.4 and/or 5 GHz bands, and ranges up to 600 ft.

Intuitive UniFi Controller Software
Install, configure, and manage all of your UniFi APs with the intuitive and easy-to-learn UniFi Controller user interface.

Expandable
Unlimited scalability. Build wireless networks as big or small as needed. Start with one (or upgrade to a three-pack) and expand to thousands while maintaining a single unified management system.

Indoor Models

Easy Mounting
Sleek wall or ceiling mount design (all accessories included).

Design
Aesthetic industrial design with a unique LED provisioning ring or square, which provides administrator location tracking and alerts for each device.

Power over Ethernet (PoE)
The UAP-IW can be powered by a UniFi Switch. The UAP-IW cannot be powered by a passive PoE source such as a PoE injector or the TOUGHSwitch. UniFi indoor models are available in single-packs and multi-packs.

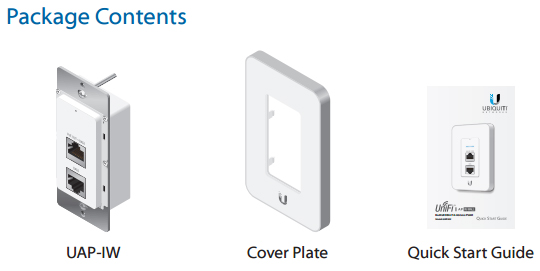

Except for the UAP-IW, all UniFi APs include:

• Wall and Ceiling Mount Kit
• Power over Ethernet Adapter

Deployment:

Network Topology Requirements

• A DHCP-enabled network for the AP to obtain an IP address (wireless clients will also obtain IP addresses after deployment)
• A management station computer running the UniFi Controller software, located either onsite and connected to the same Layer 2 network, or off-site in a cloud or NOC

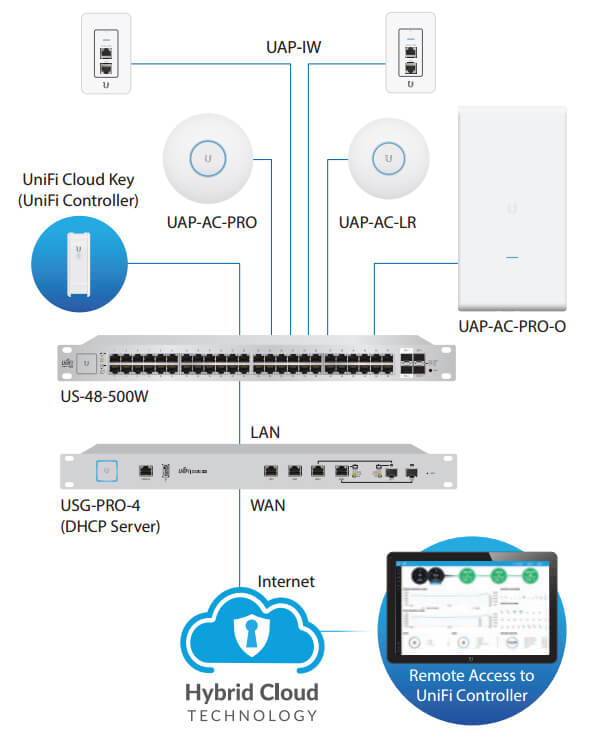

Sample Network Diagram

Extend Your Coverage

With the UniFi Controller software running in a NOC or in the cloud, administrators can extend and centrally manage wide areas of indoor and outdoor coverage using any combination of UniFi AP devices.

Below are some examples of how UniFi APs can be deployed.

Multi-Site Management
A single UniFi Controller running in the cloud manages multiple sites. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator read/write and read-only accounts.

Extend Wirelessly
Take advantage of wireless downlinking. One wired UniFi AP uplink supports 4 wireless downlinks, allowing wireless adoption of devices in their default state and real-time changes to network topology.

Manage Hotspots and Control Billing
Use Hotspot Manager to customize portal login pages and bill customers using major credit cards via PayPal. Or, use Hotspot Manager to set up a voucher-based authentication system for voucher creation, user administration, guest management, and payment refunds.

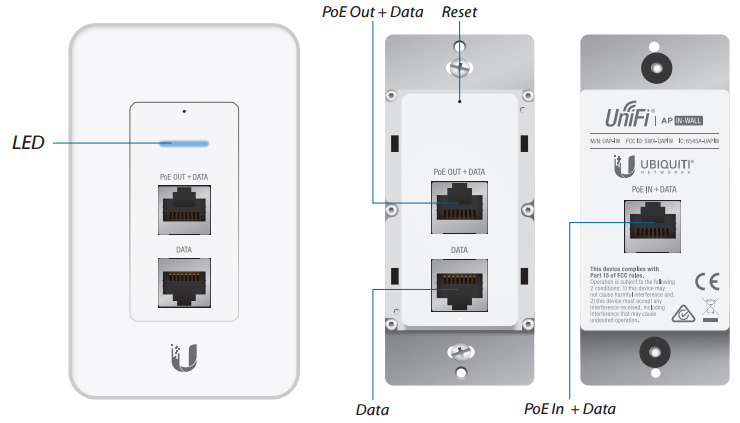

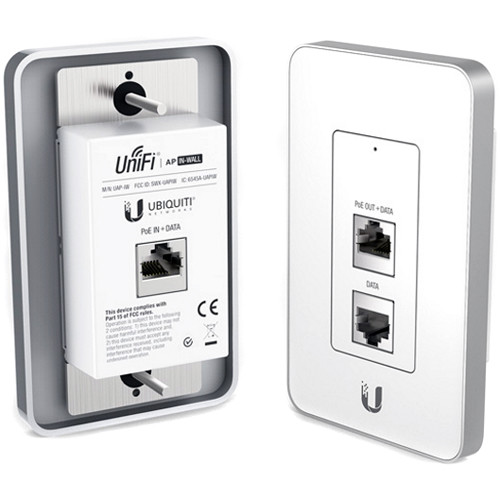

Product Views:

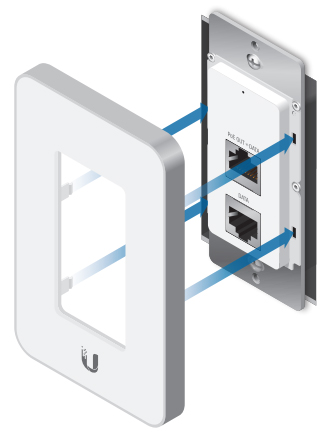

Cover Plate

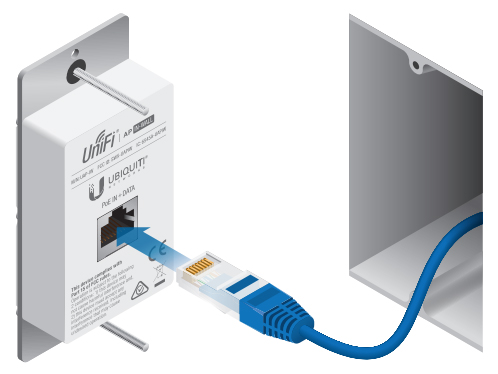

Wall Box to the port

Specifications:

UniFi Product Comparison:

	UniFi AP In-Wall	UniFi AP	UniFi AP-LR	UniFi AP-Pro	UniFi AP-Outdoor 5G	UniFi AP-Outdoor+
Usage	Indoor				Outdoor
2.4 GHz Speed*	150 Mbps	300 Mbps	300 Mbps	450 Mbps		450 Mbps
5 GHz Speed*				300 Mbps	300 Mbps
Range*	25 m (82 ft)	122 m (400 ft)	183 m (600 ft)	122 m (400 ft)	183 m (600 ft)	183 m (600 ft)
Secondary Ethernet Port
Gigabit Ethernet
Wi-Fi Standards	802.11 b/g/n	802.11 b/g/n	802.11 b/g/n	802.11 a/b/g/n
2.4 GHz					802.11 a/n	802.11 b/g/n
5 GHz
Simultaneous Dual-Band
Ubiquiti PoE
802.3af Compliant				802.3af (PoE)
Wall Mount						802.3af (PoE)
Ceiling Mount
Pole Mount
Security Lock
External Antennas

* Speed and Range values may vary and are based on optimal environments.

Technology:

Zero Handoff Roaming

Multiple access points act as a cluster, appearing as a single AP and enabling seamless roaming by wireless clients.

Any-Sized Network Appears as One AP
A wireless client detects only one AP, so it seamlessly maintains its connection as it switches to the nearest AP. There is no need for the client to renegotiate; any negotiation is offloaded to the APs. They decide which AP should take over the live connection next when the client moves.

Ideal for Mobile Clients
Zero Handoff Roaming is ideal for mobile clients that tend to move around or sticky clients that tend to stay connected to the same access point.

Client connected to AP A	APs A and B negotiate to determine which AP best sees the client	AP B takes over the client connection	APs B and C negotiate to determine which AP best sees the client	AP C takes over the client connection

The UniFi APs use multicasting to communicate with each other and determine which is the best AP for the client based on signal, thereby preventing any packet loss or latency. Only the AP with the best signal serves the client.

Multi-Lane RF Technology

Multi-Lane RF Technology isolates signals on the operating channel and rejects interference using specialized circuitry: the High-Selectivity Receiver.

Increases Capacity and Throughput in High-Density Areas, Optimizes Operating Channel

Optimizes Operating Channel

Although theoretically channels 1, 6 and 11 of the 2.4 GHz operating band shouldn't overlap, in practice there is cross-channel interference that affects receiver performance, especially in noisy, high-density environments. For example, a typical AP operating on channel 6 also hears RF from channels 1 and 11, because the typical AP has a generic filter that only filters out any non-2.4 GHz interference – all 2.4 GHz frequencies are still allowed in.

When the UniFi AP-Outdoor+ operates on the selected channel, its Multi-Lane™RF technology specifically eliminates the other channel frequencies, creating a clean spectrum with minimal noise.

More Capacity – More Performance

Multi-Lane RF technology adds 30+ dB of adjacent channel rejection through the active filter design, so the UniFi® AP Outdoor+ can achieve up to double or triple the performance of a typical AP in a high-density environment.

Software:

UniFi Controller Software

After the UniFi Controller software is installed on a Mac or PC, the UniFi Controller can be accessed through any device using a Web browser. The UniFi Controller allows the administrator to instantly provision thousands of UniFi APs, map out networks, quickly manage system traffic, and further provision individual UniFi AP devices.

Packed with Features

Use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.

Manage Your Networks from a Single Control Plane

The UniFi Controller can be accessed through any device using a web browser. A single UniFi Controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers.

Intuitive and Robust Configuration, Control and Monitoring

The UniFi Controller enables the administrator to instantly provision and configure thousands of UniFi APs, allowing for quick, simple management of system traffic.

Breakthrough RF Map

Use the RF map to monitor and analyze radio frequencies for optimal AP placement, configuration, and troubleshooting.

Powerful RF Performance Features

Advanced RF performance and configuration features include spectral analysis, airtime fairness, and band steering.

Detailed Analytics

Use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.

Wireless Uplink

Wireless Uplink functionality enables wireless onnectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology.

Guest Portal/Hotspot Support

Easy customization and advanced options for Guest Portals include authentication, Hotspot setup options, and the ability to run as an external portal server. Take advantage of UniFi’s rate limiting for your Guest Portal and Hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use.

All UniFi APs include Hotspot functionality:

• Built-in support for billing integration using major credit cards.
• Built-in support for voucher-based authentication.
• Built-in Hotspot Manager for voucher creation, guest management, and payment refund.
• Full customization and branding of Hotspot portal pages.

Multi-Site Management

A single UniFi Controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator read/write and read-only accounts.

WLAN Groups

The UniFi Controller can manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP's radio.

Remote Firmware Upgrade

Save time and effort by remotely upgrading device firmware.

Users and Guests

Keep track and control access of specific users and guests connected to your network(s).

One UniFied Network with Zero-Handoff Roaming

Create one large wireless network across multiple APs so users can roam and seamlessly maintain their connection as they switch to the nearest AP.

Custom Maps and Google Maps

Upload custom maps or use Google Maps for a visual representation of your wireless network.

WLAN Groups

Take advantage of WLAN groups for flexible configuration of large deployments and enable wireless connection between APs to extend range.

Dashboard
UniFi provides a visual representation of your network's status and delivers basic information about each network segment.


RF Map
Monitor UniFi APs and analyze the surrounding RF environment.


Statistics
UniFi organizes and visualizes network traffic in clear and easy-to-read graphs.

Miscellaneous:

Protect your networks from the most brutal environments with Ubiquiti's industrialgrade shielded ethernet cable, TOUGHCable.

• Increase Performance - Dramatically improve your ethernet link states, speeds, and overall performance with Ubiquiti TOUGHCables.
• Extreme Weatherproof - TOUGHCables have been built to perform even in the harshest weather and environments.
• ESD Damage Protection - Protect your networks from devastating electrostatic discharge (ESD) attacks.
• Extended Cable Support - TOUGHCables have been developed to have increased power handling performance for extended cable run lengths.

Bulletproof your networks

TOUGHCable is currently available in two versions: PRO Shielding Protection and CARRIER Shielding Protection.

Additional Information:

• 24 AWG copper conductor pairs
• 26 AWG integrated ESD drain wire to prevent ESD attacks and damage
• PE outdoor-rated, weatherproof jacket
• Multi-layered shielding
• Available in lengths of 1000 ft (304.8 m)

TOUGHCable Connectors

Specifically designed for use with Ubiquiti TOUGHCables and available in 100-pc. bags, TOUGHCable Connectors protect against ESD attacks and Ethernet hardware damage while allowing rapid fi eld deployment without soldering.

ESD attacks are the leading cause for device failures. The diagram below illustrates the areas vulnerable to ESD attacks in a network.	By using a grounded Ubiquiti Power over Ethernet (PoE) Adapter along with Ubiquiti TOUGHCable and TOUGHCable Connectors, you can effectively protect against ESD attacks.

Documentation:

Download the Ubiquiti UniFi Access Point Datasheet (PDF).
