Ubiquiti UniFi Cloud Key Gen 2
Hybrid Cloud Key Technology with Integrated Application Server


Ubiquiti UniFi Cloud Key Gen 2

Ubiquiti Products
UniFi Access Points
UNIFI CTLR CLOUD KEY G2
#UCK-G2
Get a Quote!

Click here to jump to more pricing!

Overview:

  • Fully Integrated, Stand-Alone UniFi® Controller
  • Multi-Site Network Management
  • Remote, Private Cloud Access to UniFi Network

UniFi Controller with Hybrid Cloud

UniFi Cloud Key Gen 2The UniFi Cloud Key Gen2 is an integrated hardware controller and self-contained application server designed to help you monitor and manage your UniFi network devices. It features an eight-core processor with 2 GB RAM and 32 GB eMMC flash storage, and utilizes the latest version of the UniFi Controller with hybrid cloud technology.

Breakthrough Efficiency

The UniFi Cloud Key Gen2 is fully capable of configuring and managing dozens of UniFi devices on your network, and offers an ultra-low energy PoE replacement for a dedicated server or computer, leaving behind no digital footprint.

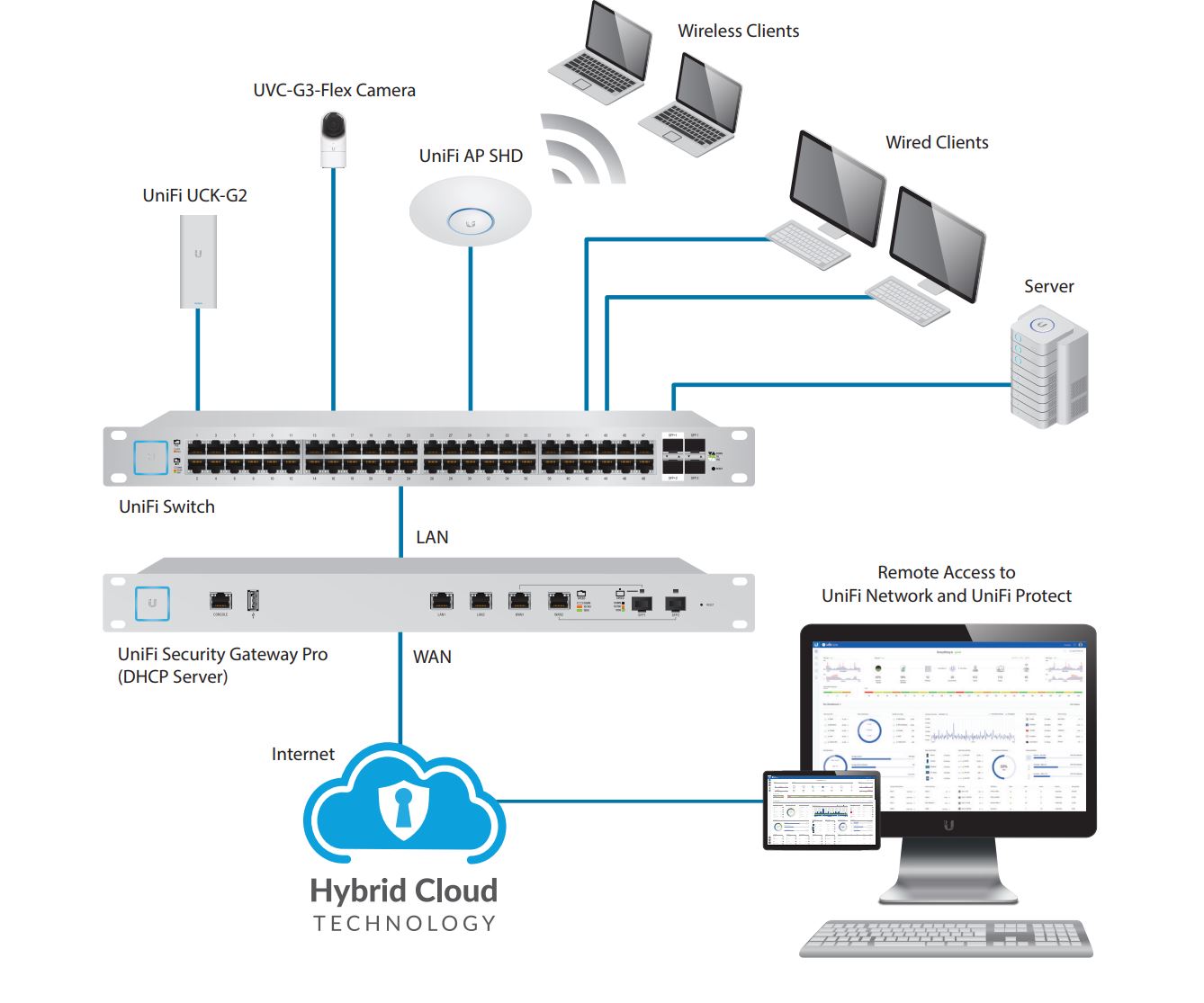

Hybrid Cloud Technology

The Ubiquiti® hybrid cloud configuration provides a secure, private SSO (Single Sign-On) to access all of your UniFi deployments from anywhere in the world. With the Ubiquiti hybrid cloud, a third-party hosted cloud service is not required, so all of your personal data and network information remains local and secure–the way it should be.

Incredible, Agile Scalability

Add, provision, configure, monitor, and manage all of your UniFi devices, whether in one or hundreds of private networks–all from a centralized control panel.

Easily accessible through one of our downloadable apps or a standard web browser (Chrome recommended), the UniFi Cloud Key Gen2 is a powerful solution for managing your UniFi networks across the campus or across the globe.

overview-1

Features:

Multi-Site Management

A UniFi Cloud Key Gen2 installed at each deployment site provides an always-on, private UniFi cloud service. Every site is accessible through its assigned secure SSO. Each Cloud Key Gen2 is independent with its own network monitoring, configuration, maps, statistics, and admin accounts.

Improved User Experience

Redesigned to be more intuitive and easier to navigate, the new UI raises the bar for enterprise network management efficiency. Important network details are logically organized for a simplified, yet powerful, interface.

Network Overview

A comprehensive overview of your network health is readily available in the new dashboard. Monitor your network’s vitals and make on‑the‑fly adjustments as needed.

Detailed Analytics

Use the configurable reporting and analytics to monitor large user groups and expedite troubleshooting.

LAN/WLAN Groups

The UniFi Network Controller can manage flexible configurations of large deployments. Create multiple LAN and WLAN groups and assign them to the respective UniFi devices.

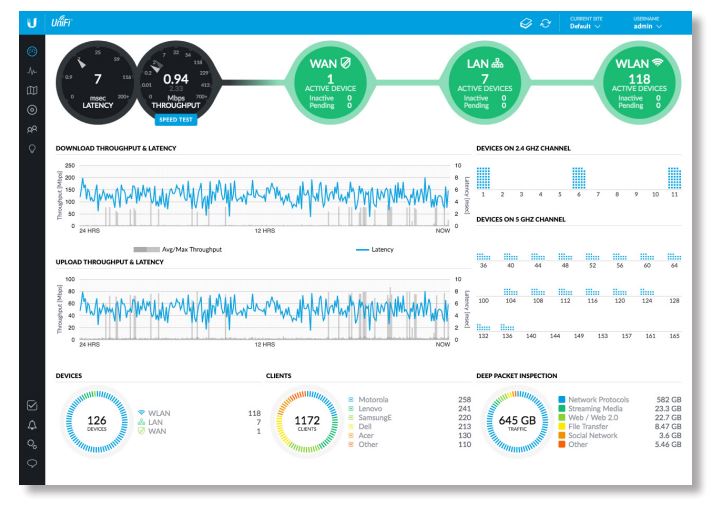

Dashboard

UniFi provides a visual representation of your network’s status and delivers basic information about each network segment.

feat 1

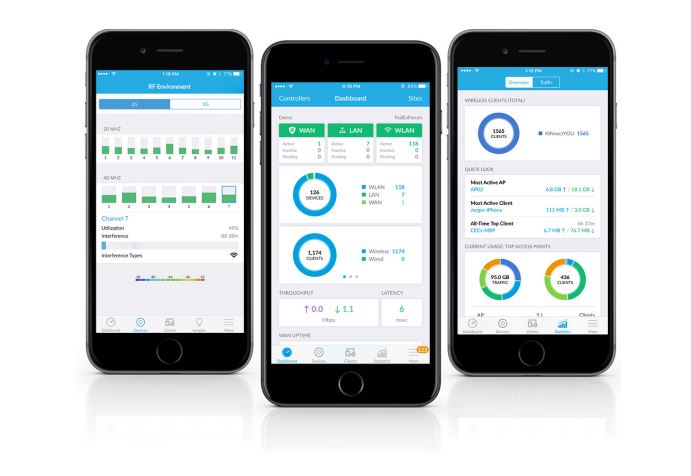

UniFi Mobile App

The downloadable app provides free remote cloud access to your UniFi Controller. It also allows you to analyze and manage the health and traffic of your UniFi network from anywhere in the world using your single-signon Ubiquiti account.

feat 2

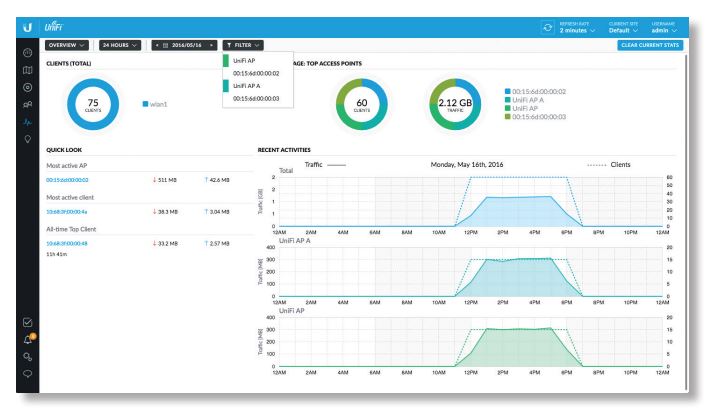

Statistics

The Statistics tab provides a visual representation of the network clients and network traffic carried by your managed UniFi Switches and APs.

feat 3

Specifications:

UniFi Cloud Key Gen 2 Specification
Dimensions 27.10 x 46.80 x 119.75 mm (1.07 x 1.84 x 4.71”)
Weight 150 g (5.29 oz)
Enclosure Anodized Aluminum
Processor APQ8053 with 2 GB RAM
eMMC Memory 32GB
Management Interface UniFi App; UniFi Network Interface
Networking Interface (1) 10/100/1000 Ethernet Port
Configuration Interface BlueTooth LE with Ubiquiti Mobile Applications
Web browser
Buttons (1) Power; (1) Reset
LEDs (1) Power, White/Blue
Power Method Standard 802.3 af PoE, DC 5V 1A Powered
Supported Voltage Range Standard 802.3 af PoE, DC 5V 1A
Max. Power Consumption 5W (PoE/Adapter)
Certifications CE, FCC, IC
Operating Temperature 0 to 35° C (32 to 104° F)
Operating Humidity 20 to 80% Noncondensing

Documentation:

Download the Ubiquiti UniFi Cloud Key Gen 2 Datasheet (PDF).
