Ubiquiti Precision Alignment Kit
Precision Alignment Kit for 620 mm Dish Reflector

Overview:

The Precision Alignment Kit enables extremely accurate aiming to optimize airFiber and airMAX Point-to-Point (PtP) links. It features 15° of azimuth adjustment and 15° of elevation adjustment to enable extremely accurate aiming for optimal PtP link performance.

The Precision Alignment Kit is compatible with the following:

• airFiber AF-5G30-S45
• PowerBeam PBE-5AC-620
• PowerBeam PBE-M5-620
• RocketDish RD-5G30-LW

Features:

Plug and Play Compatibility

Use the Precision Alignment Kit with any of these dish antennas: airFiber AF-5G30-S45, PowerBeam PBE-5AC-620, PowerBeam PBE-M5-620, and RocketDish RD-5G30-LW.

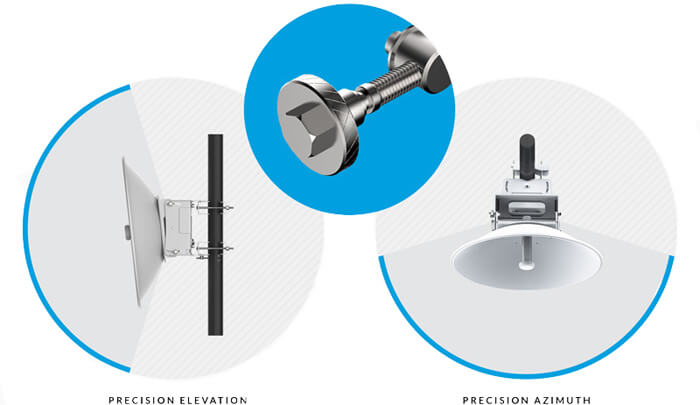

Optimal Link Deployment

Precision two-axis alignment enhances beam directivity for maximum PtP or backhaul performance.

Product Views:

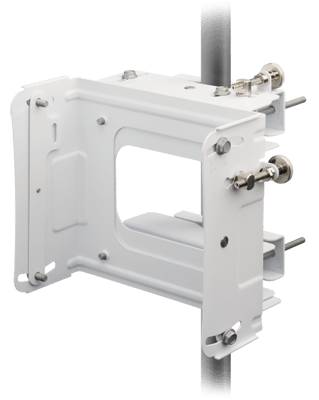

Front View

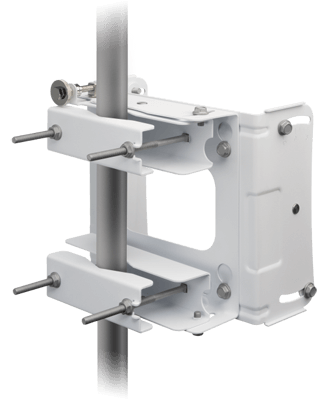

Rear View

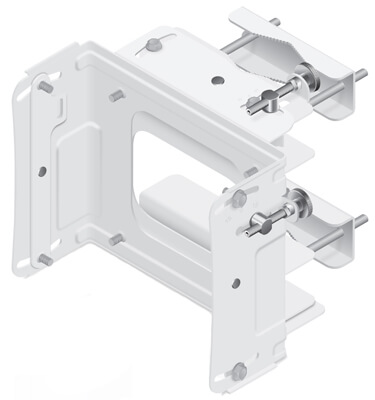

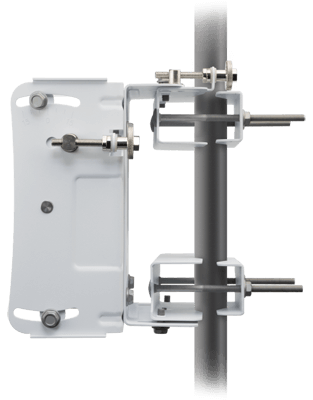

Side View

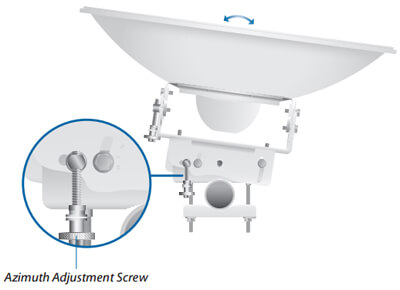

Azimuth Angle up to ±15°

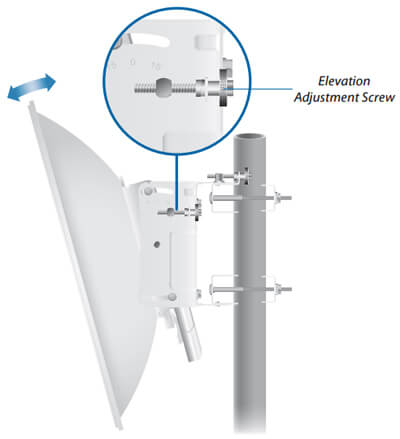

Elevation Angle up to ±15°

Specifications:

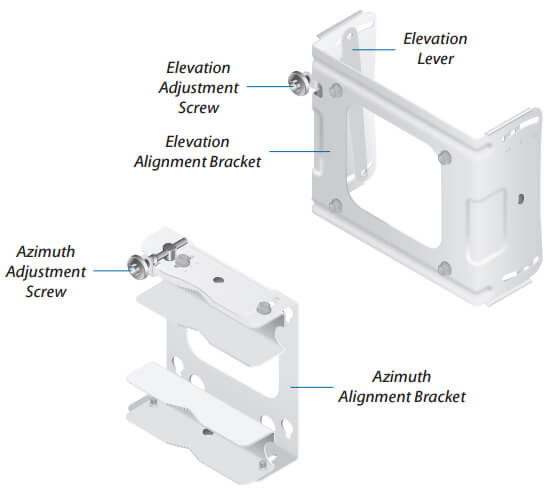

Alignment Bracket Assembly after Separation of Brackets
