Overview:

The EdgePower is a high-power, modular PSU system designed to connect to EdgePoint routers/switches, and provide reliable power to attached PoE devices. The EdgePower uses modular PSUs for flexible configuration options. The EdgePower can utilize two modular PSUs to provide up to 300W of power, or be configured to provide up to 150W of power with an automatic PSU backup.

The EdgePower consists of a rack-mountable, two-bay housing and control unit, and includes one AC-DC 54V, 150W PSU module. The second PSU bay can house an AC-DC or DC-DC PSU module (sold separately):

  • EP-54V-150W-AC
  • EP-54V-150W-DC

EdgeMAXAdvanced Routing Technology for the Masses

Ubiquiti Networks introduces the EdgePoint, part of the EdgeMAX platform. The first application-specific designed WISP control point, the EdgePoint combines EdgeMAX routing features with fiber backhaul and versatile powering capabilities. The EdgePoint offers an innovative combination of robust routing performance, fiber backhaul capability, and the convenience of passive PoE support.

Features:

Versatile, Modular Design

The rack-mountable EdgePower features two PSU bays. One 54V, 150W AC-DC module is included, and an optional AC-DC or DC-DC module is available.

High Power

The EdgePower provides up to 150W of power output. With an optional PSU in the secondary bay, the EdgePower may be configured to deliver up to 300W of power.

High Power

Backup PSU

The secondary PSU may be configured as a backup PSU. In backup mode, the secondary PSU remains inactive and offline. If failure of the primary PSU is detected, the secondary PSU automatically activates to supply continuous power.

Backup PSU

EdgePower Tower Deployment Example

EdgePower Tower Deployment Example

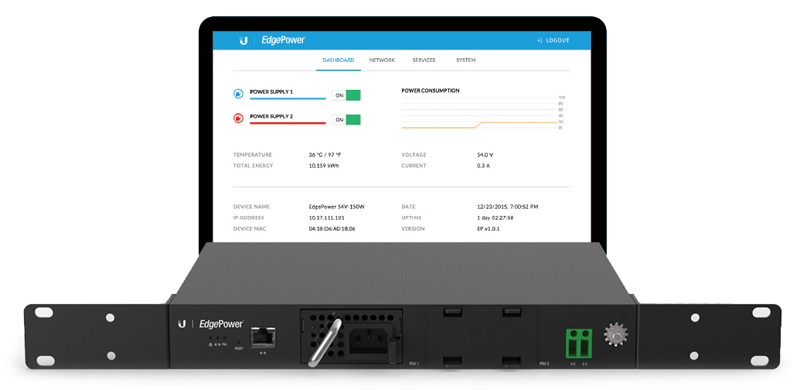

Remote Monitoring and Configuration

Designed for convenient management, the EdgePower Configuration Interface allows administrators to configure and monitor PSU features in a simple, graphical user interface. The EdgePower may be connected to the LAN for remote monitoring and configuration.

Remote Monitoring and Configuration

Product Views:

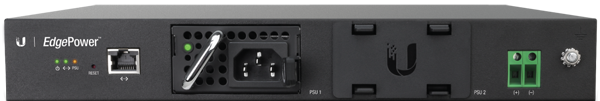

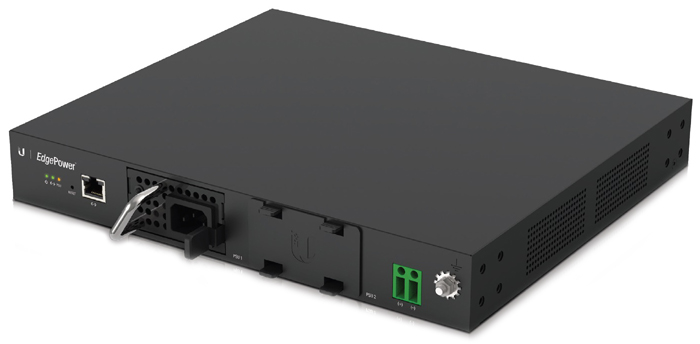

Angle View
Angle View

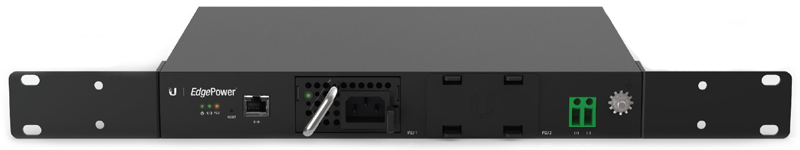

With Mount Brackets
With Mount Brackets

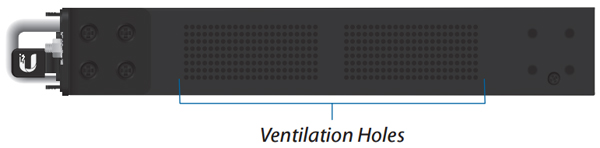

Side View
Side View

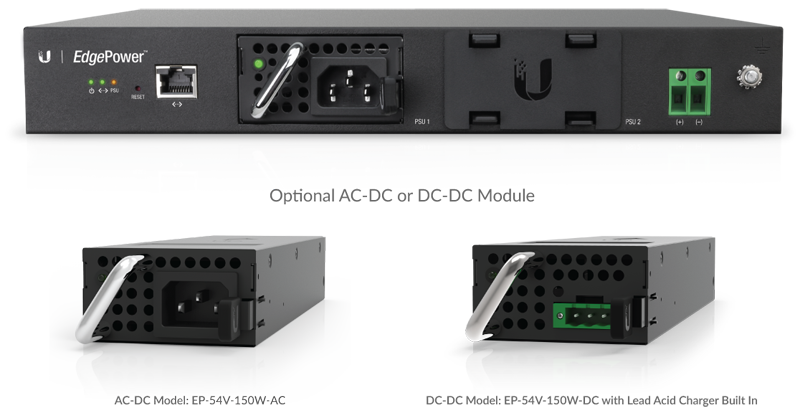

Optional AC-DC or DC-DC Module

Specifications:

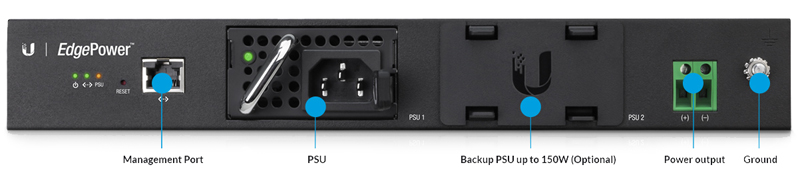

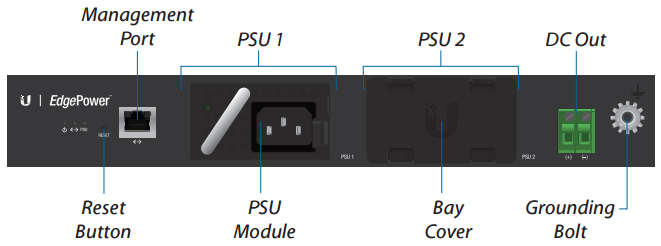

Front Panel View
Front Panel View

EdgePower ES-54V-150W Specification
Dimensions without Mount Brackets 299.8 x 286.9 x 42.55 mm (11.89 x 11.3 x 1.675")
Weight without Mount Brackets 2.7 kg (5.95 lb)
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply Module 54V, 150W AC/DC,
Model EP-54V-150W-AC,
Installed in PSU 1
Maximum Power Output 150W (1 PSU Module)
300W (2 PSU Modules @ 150W Each)
LEDs Power: System On/Off
Ethernet: Management Port Link
PSU: PSU1+PSU2, PSU1/PSU2
Networking Interface (1) 10/100 RJ45 Ethernet
Management Interface Ethernet In-Band, Web UI
Rack-Mount Yes, 1U High
Operating Temperature 0 to 40° C (32 to 104° F)
Operating Humidity 10 to 90% Noncondensing
ESD/EMP Protection Air ± 24KV; Contact ± 24KV
Certifications CE, FCC, IC

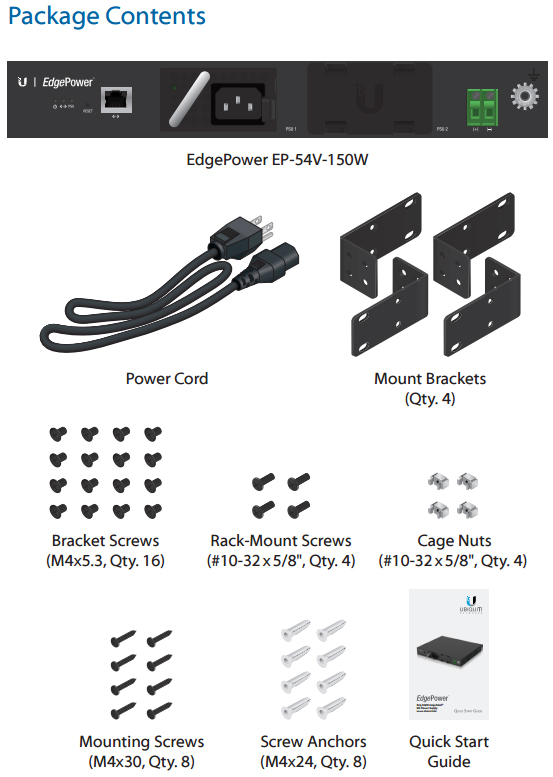

Package Contents

Miscellaneous:

PowerCablePowerCable
Model: PC-12

Carrier-Grade Outdoor Electrical Cable

Available in 1000 ft (304 m) lengths, PowerCable is manufactured to engineering specifications to supplies reliable DC power to your EdgePoint devices.

  • All-Weather, UV-Resistant
  • 12 AWG Tinned Stranded Copper
  • Fire-Resistant Polyethylene Jacket (FT-1)
  • Temperature Range: -30 to 90° C
  • Pull Tension: 80 lb Minimum
  • Capacitance: 28 pF/ft @ 1 kHz
  • DCR: 1.77 Ω/1000 ft @ 20° C
  • Voltage Rating: 300V
  • Impedance: 56 Ω

Built to Last

PowerCable is an all-weather, UV-resistant cable designed for outdoor installations. PowerCable uses a fire-resistant, polyethylene jacket (FT-1) and operates in a temperature range from -30 to 90° C.

Built to Last

Reliable High Power

PowerCable features 12 AWG stranded tinned copper conductors, capacitance of 28 pF/ft @ 1 kHz, DCR of 1.77 Ω/1000 ft @ 20° C, voltage rating at 300V, and impedance of 56 Ω.

Reliable High Power

PowerCable Tower Deployment Example
EdgePower Tower Deployment Example

Documentation:

Download the Ubiquiti EdgePower Datasheet (PDF).
