Ubiquiti Fiber Modules and Cabling
modules to suit your fiber connectivity applications.


fiber module models


Ubiquiti Products Fiber Modules and Cabling
Fiber Single-Mode Modules
U Fiber, Single-Mode Module, 10G, 2-PACK
#UF-SM-10G
Our Price: $85.00
U Fiber, Single-Mode Module, 10G, BiDi, 2-PACK
#UF-SM-10G-S
Our Price: $160.00
Fiber Multi-Mode Modules
U Fiber, Multi-Mode Module, 1G, 2-PACK
#UF-MM-1G
Our Price: $17.00
U Fiber, Multi-Mode Module, 10G, 2-PACK
#UF-MM-10G
Our Price: $38.00

Click here to jump to more pricing!

Overview:

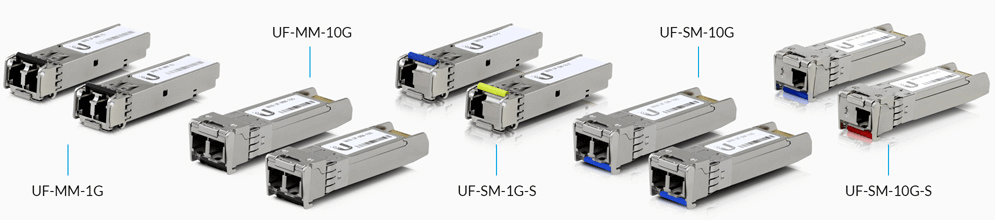

Ubiquiti Networks offers a variety of U Fiber™ modules to suit your fiber connectivity applications.

Two multi-mode models are available:

  • UF-MM-1G: SFP, 1 Gbps
  • UF-MM-10G: SFP+, 10 Gbps

Three single-mode models are available:

  • UF-SM-1G-S: SFP, 1 Gbps, BiDi
  • UF-SM-10G: SFP+, 10 Gbps
  • UF-SM-10G-S: SFP+, 10 Gbps, BiDi

Indoor Runs

For convenient multi-mode connections that extend beyond the 100-meter limitation of Ethernet cabling, use the UF-MM-10G for distances of up to 300 m and speeds of up to 10 Gbps, or use the UF-MM-1G for distances of up to 550 m and speeds of up to 1 Gbps.

Outdoor Use

For long-distance single-mode runs, use the UF-SM-10G for distances of up to 10 km at 10 Gbps, or use the UF-SM-1G for distances of up to 3 km at 1 Gbps. To protect DC power and fiber, deploy EdgePoint™ with EdgePower™.

Deploy a BiDi (BiDirectional) model, UF-SM-1G-S or UF-SM-10G-S, to maximize re-use of existing infrastructure. You must deploy a BiDi model as a paired set of modules because the pair uses two different wavelengths, upstream and downstream, on a single fiber.

Fiber Routing and Switching

Ubiquiti offers EdgeRouter™ models with SFP port(s) and multiple fiber switch options to suit your specific network infrastucture:

  US-16-XG* ES-16-XG ES-12F
10G
1G
UniFi®
Fiber to the X

FiberCable

Single-Mode LC Fiber Cable

Build your outdoor fiber network using our FiberCable. Lightweight and flexible, FiberCable is ideal for tower deployments of our outdoor routing and switching products, such as EdgePoint. Available in 100, 200, and 300 ft lengths.

  • Outdoor-Rated Jacket with Ripcord
  • Integrated Weatherproof Tape
  • Kevlar Yarn for Added Tensile Strength
  • Outer Diameter of Cable: 6.0 ± 0.2 mm
  • Six-Strand Single-Mode (G.657.A2)
  • Outer Diameter of Fiber Strand: 0.25 mm Nominal
  • Insertion Loss
    • 1310 nm: ≤0.5 dB/km
    • 1550 nm: ≤0.5 dB/km

Deployment:

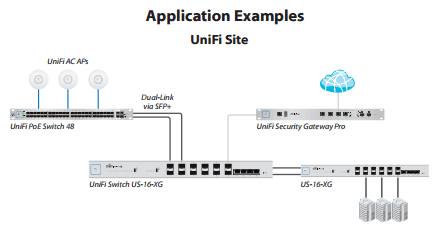

application examples

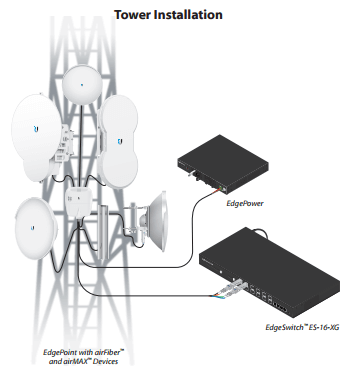

tower installation

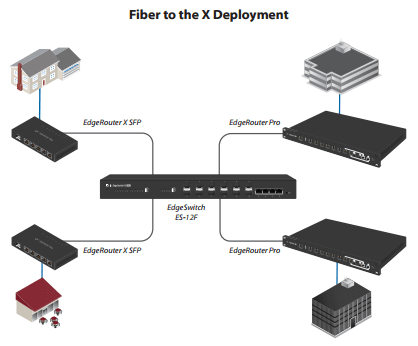

fiber to the x deployment

Model Comparison:


  UF-MM-1G UF-MM-10G UF-SM-1G-S UF-SM-10G UF-SM-10G-S
Supported Media Multi-Mode Fiber Multi-Mode Fiber Single-Mode Fiber Single-Mode Fiber Single-Mode Fiber
Connector Type (2) LC (2) LC (1) LC (2) LC (1) LC
BiDi
TX Wavelength 850 nm 850 nm Blue|Yellow 1310 nm Blue|Red
1310 nm|1550 nm 1270 nm|1330 nm
RX Wavelength 850 nm 850 nm Blue|Yellow 1310 nm Blue|Red
1550 nm|1310 nm 1330 nm|1270 nm
Data Rate 1.25 Gbps SFP 10 Gbps SFP+ 1.25 Gbps SFP 10 Gbps SFP+ 10 Gbps SFP+
Cable Distance 550 m 300 m 3 km 10 km 10 km
Pack Options 2-Pack, 20-Pack 2-Pack, 20-Pack 1-Pair, 10-Pairs 2-Pack, 20-Pack 1-Pair, 10-Pairs

Documentation:

Download the Ubiquiti Fiber Modules and Cabling Datasheet (PDF).

Pricing Notes:

Ubiquiti Products Fiber Modules and Cabling
Fiber Single-Mode Modules, 2-Pack
U Fiber, Single-Mode Module, 10G, 2-PACK
#UF-SM-10G
Our Price: $85.00
U Fiber, Single-Mode Module, 10G, BiDi, 2-PACK
#UF-SM-10G-S
Our Price: $160.00
Fiber Multi-Mode Modules, 2-Pack
U Fiber, Multi-Mode Module, 1G, 2-PACK
#UF-MM-1G
Our Price: $17.00
U Fiber, Multi-Mode Module, 10G, 2-PACK
#UF-MM-10G
Our Price: $38.00
Fiber Single-Mode Modules, 20-Pack
U Fiber, Single-Mode Module, 1G, BiDi, 20-PACK
#UF-SM-1G-S-20
Our Price: $190.00
U Fiber, Single-Mode Module, 10G, 20-PACK
#UF-SM-10G-20
Our Price: $750.00
U Fiber, Single-Mode Module, 10G, BiDi, 20-PACK
#UF-SM-10G-S-20
Our Price: $1,450.00
Fiber Multi-Mode Modules, 20-Pack
U Fiber, Multi-Mode Module, 1G, 20-PACK
#UF-MM-1G-20
Our Price: $150.00
U Fiber, Multi-Mode Module, 10G, 20-PACK
#UF-MM-10G-20
Our Price: $360.00
Transceiver Modules
RJ45 - 10Gbps SFP+ Transceiver Module, SFP+ to RJ45
#UF-RJ45-10G
Our Price: $65.00
FiberCable
Fiber Cable, Single Mode, 100
#FC-SM-100
Our Price: $59.00
Fiber Cable, Single Mode, 200
#FC-SM-200
Our Price: $89.00
Fiber Cable, Single Mode, 300
#FC-SM-300
Our Price: $119.00
