EdgeMAX Carrier Routing
Advanced Network Routing and Switching

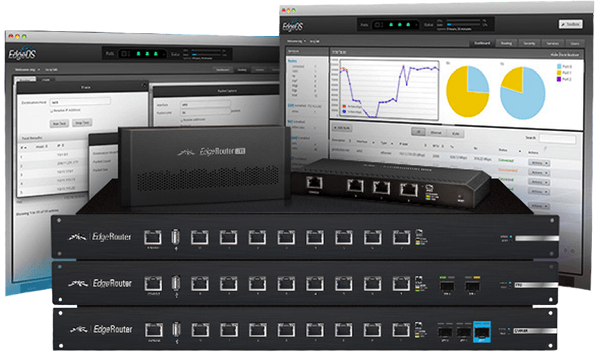

EdgeMAX EdgeRouter

EdgeMAXCarrier-class reliability and performance are combined with enterprise-level features in a compact and affordable unit. EdgeMAX software integrates with EdgeMAX hardware for the routing, switching, security and management features required to efficiently run your network.

Powered by a proprietary and intuitive graphical interface, EdgeOS, EdgeRouters can easily be configured for routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.

EdgeMAX EdgeRouter Series

EdgeRouter X

EdgeRouter X

  • (5) Gigabit RJ45 ports
  • Passive PoE passthrough option
  • Power via 24V passive PoE or power adapter
  • Ports configurable for line-rate, Layer-2 switching

EdgeRouter X SFP

EdgeRouter X SFP

  • (5) Gigabit RJ45 ports with passive PoE support
  • (1) Gigabit SFP port for backhaul applications
  • Ports configurable for line-rate, Layer-2 switching

EdgeRouter Lite

EdgeRouter Lite

  • (3) Gigabit routing ports
  • 1 million packets per second for 64-byte packets
  • Silent, fanless operation
  • Compact, durable metal casing

EdgeRouter

EdgeRouter

  • (8) Gigabit routing ports
  • 2 million packets per second for 64-byte packets
  • 8 Gbps for packets 512 bytes or larger in size
  • Rackmountable

EdgeRouter Pro

EdgeRouter Pro

  • (6) Gigabit routing ports
  • (2) Gigabit RJ45/SFP combination ports
  • 2 million+ packets per second for 64-byte packets
  • 8 Gbps for packets 512 bytes or larger in size
  • Rackmountable
EdgeMAX EdgeSwitch Series

EdgeSwitch 5XP

EdgeSwitch 5XP

  • 5 PoE adapters
  • 5 power cords
  • 5 power outlets
  • 5 Ethernet patch cables
  • Port monitoring
  • System connection and management services
  • Virtual Local Area Network (VLAN) configuration
  • Spanning Tree Protocol (STP)/Rapid Spanning Tree Protocol (RSTP)
  • Jumbo Frame Support
  • Ping Watchdog
  • Configurable alerts

EdgeSwitch 8

EdgeSwitch 8

  • (8) Gigabit RJ45 Ports
  • (2) SFP Ports
  • (1) Serial Console Port
  • Non-Blocking Throughput: 10 Gbps
  • Switching Capacity: 20 Gbps
  • Forwarding Rate: 14.88 Mpps
  • Maximum Power Consumption: 150W
  • Supports POE+ IEEE 802.3at/af and 24V Passive PoE
  • Wallmountable with Mount Brackets (Included)
  • Desktop-Mountable (Do not physically stack the ES-8-150W)
  • DC Input Option (Redundant or Stand-Alone)

EdgeSwitch 16

EdgeSwitch 16

  • (16) Gigabit RJ45 Ports
  • (2) SFP Ports
  • (1) Serial Console Port
  • Non-Blocking Throughput: 18 Gbps
  • Switching Capacity: 36 Gbps
  • Forwarding Rate: 26.78 Mpps
  • Maximum Power Consumption: 150W
  • Supports POE+ IEEE 802.3at/af and 24V Passive PoE
  • Rackmountable with Rack-Mount Brackets (Included)

EdgeSwitch 16 XG

EdgeSwitch 16 XG

  • (12) SFP+ Ports
  • (4) 10G RJ45 Ports
  • (1) RJ45 Serial Console Port
  • Non-Blocking Throughput: 160 Gbps
  • Switching Capacity: 320 Gbps
  • Forwarding Rate: 238.10 Mpps
  • Rack Mountable with Rack-Mount Brackets (Included)
  • DC Input Option (Redundant or Stand-Alone)

EdgeSwitch 16XP

EdgeSwitch 8XP

  • 16 PoE adapters
  • 16 power cords
  • 16 power outlets
  • 16 Ethernet patch cables
  • Port monitoring
  • System connection and management services
  • Virtual Local Area Network (VLAN) configuration
  • Spanning Tree Protocol (STP)/Rapid Spanning Tree Protocol (RSTP)
  • Jumbo Frame Support
  • Ping Watchdog
  • Configurable alerts

EdgeSwitch 24 Lite

EdgeSwitch 24 Lite

  • (24) Gigabit RJ45 Ports
  • (2) SFP Ports
  • (1) Serial Console Port
  • Non-Blocking Throughput: 26 Gbps
  • Switching Capacity: 52 Gbps
  • Forwarding Rate: 38.69 Mpps
  • Maximum Power Consumption: 25W
  • Rack- or Wall-Mountable
  • Quiet, Fanless Operation

EdgeSwitch 24

EdgeSwitch 24

  • (24) Gigabit RJ45 ports
  • (2) SFP ports
  • Non-blocking throughput: 26 Gbps
  • Switching capacity: 52 Gbps
  • Forwarding rate: 38.69 Mpps
  • Maximum power consumption: 250W
  • Supports POE+ IEEE 802.3at/af and 24V Passive PoE
  • Rackmountable

EdgeSwitch 48 Lite

EdgeSwitch 48 Lite

  • (48) Gigabit RJ45 Ports
  • (2) SFP+ Ports
  • (2) SFP Ports
  • (1) Serial Console Port
  • Non-Blocking Throughput: 70 Gbps
  • Switching Capacity: 140 Gbps
  • Forwarding Rate: 104.16 Mpps
  • Maximum Power Consumption: 56W
  • Rack- or Wall-Mountable

EdgeSwitch 48

EdgeSwitch 48

  • (48) Gigabit RJ45 ports
  • (2) SFP+ ports
  • (2) SFP ports
  • Non-blocking throughput: 70 Gbps
  • Switching capacity: 140 Gbps
  • Forwarding rate: 104.16 Mpps
  • Maximum power consumption: 500W and 750W
  • Supports POE+ IEEE 802.3at/af and 24V Passive PoE
  • Rackmountable

EdgeSwitch 12 Fiber

EdgeSwitch 12 Fiber

  • (12) Gigabit SFP Ports
  • (4) Gigabit RJ45 Ports
  • (1) Serial Console Port
  • Non-Blocking Throughput: 16 Gbps
  • Switching Capacity: 32 Gbps
  • Forwarding Rate: 23.81 Mpps
  • Maximum AC Power Consumption: 56W
  • Rackmountable with Rack-Mount Brackets (Included)
  • DC Input Option (Redundant or Stand-Alone)
EdgeMAX EdgePoint Series

EdgePoint R6


EdgePoint R6

  • Intelligent WISP Control Point with FiberProtect
  • 24VDC, 3A Terminal Block
  • PoE Input
  • (5) 24V, 0.7A Passive PoE OutputĀ Ports
  • (1) SFP Port

EdgePoint R8

EdgePoint R8

  • Intelligent WISP Control Point with FiberProtect
  • 54VDC, 3A Terminal Block
  • Dual PoE Input
  • (1) Console Port
  • (6) RJ45 Ports
  • (2) Combination RJ45/SFP Ports
  • Nine RJ45 ports support PoE

EdgePoint S16

EdgePoint S16

  • Intelligent WISP Control Point with FiberProtect
  • 54VDC, 3A Terminal Block
  • Dual PoE Input
  • (1) Console Port
  • (16) RJ45 Ports
  • (2) Combination RJ45/SFP Ports
  • Sixteen RJ45 ports support PoE

EdgePower

EdgePower

  • Modular DC Power Supply for EdgePoint
  • Flexible, Modular PSU Design
  • Supports up to Two 150W PSU Modules
  • Secondary AC-DC or DC-DC PSU Available
