airFiber NxNOverview:

Combine multiple airFiber X radios on a single dish antenna for superior noise immunity performance, redundancy, and multi-Gigabit Point-to-Point (PtP) throughput.

Multi-Gigabit Throughput

Introducing the airFiber NxN, a thoughtfully engineered MIMO multiplexer that increases the amazing throughput of your airFiber link by up to 400%, while simultaneously establishing redundancy without the need of additional antennas.

The airFiber NxN is a scalable MIMO multiplexer that combines multiple airFiber 5X radios on a single dish antenna for superior noise immunity performance, redundancy, and multi-Gigabit throughput. Upgrading a 5 GHz airMAX or airFiber link is fast and easy. Simply attach the airFiber NxN to the fast-mount on the antenna and connect the RF cables.

Models

AirFiber 4x4 (AF-MPx4)

  • 4x4 MIMO
  • Multiplex (2) airFiber 5X radios*
  • Aggregate Throughput up to 1+ Gbps
  • Up to 1 Redundant Link

AF-MPx4 2x Faster Throughput

AirFiber 8x8 (AF-MPx8)

  • 8x8 MIMO
  • Multiplex up to (4) airFiber 5X radios*
  • Aggregate Throughput up to 2+ Gbps
  • Up to 3 Redundant Links

AF-MPx8 4x Faster Throughput

* airFiber radios and antennas sold seperately.

Features:

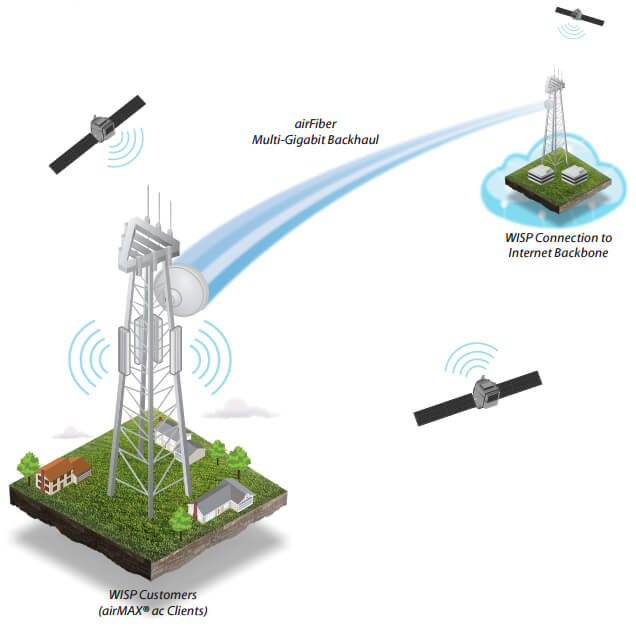

Precise GPS Synchronization

Using a common GPS timing reference, the airFiber X radios work cohesively to deliver powerful, multi-Gigabit bridging performance for PtP links.

Precise GPS Synchronization

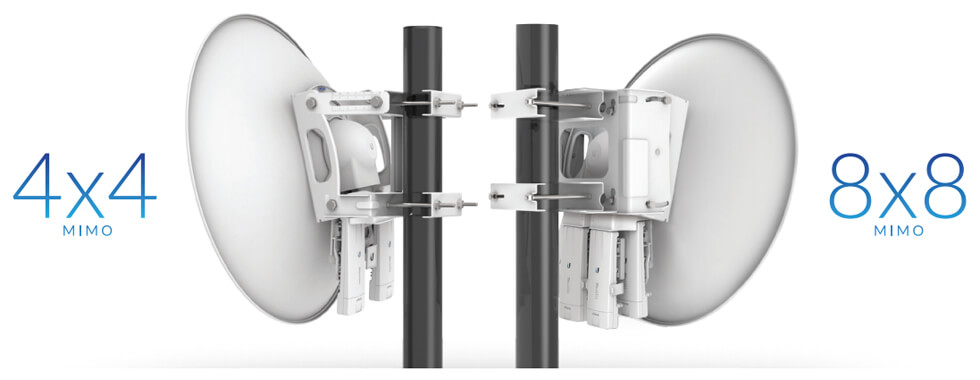

4x4 or 8x8 MIMO Backhaul Technology

Quickly mount multiple airFiber X radios on existing airFiber dish antennas for Plug and Play installation. You can use radio channels of different sizes – even adjacent channels with no guard band – and place them anywhere within the radio band.

4x4 or 8x8 MIMO Backhaul Technology

Mounting Versatility

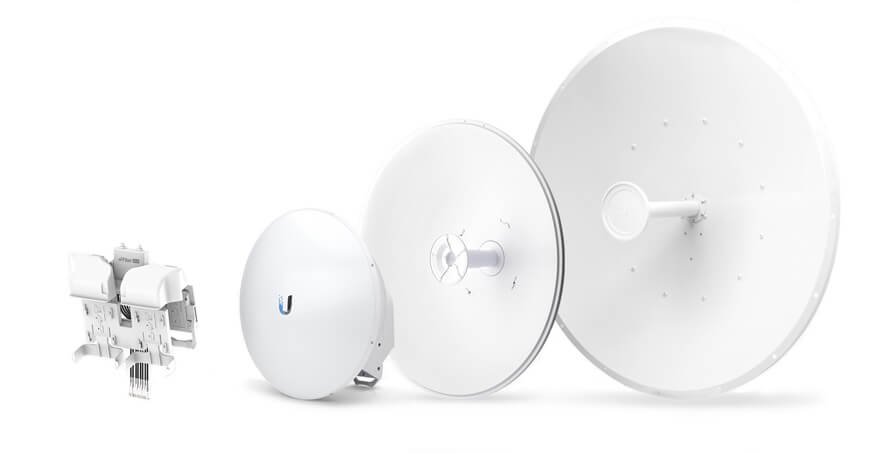

The airFiber NxN Multiplexer can be attached to most 5 GHz airFiber X or RocketDish antenna models. For any other antenna configuration, you can mount the airFiber NxN Multiplexer on a pole.

Mounting Versatility

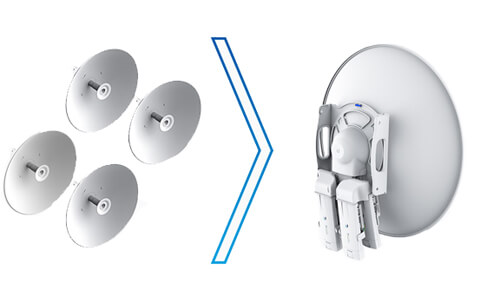

Reduced Tower Costs

Mounting multiple airFiber X radios on a single dish antenna maximizes throughput and capacity in a clean, compact tower footprint, minimizing tower costs.

Reduced Tower Costs

True Redundancy

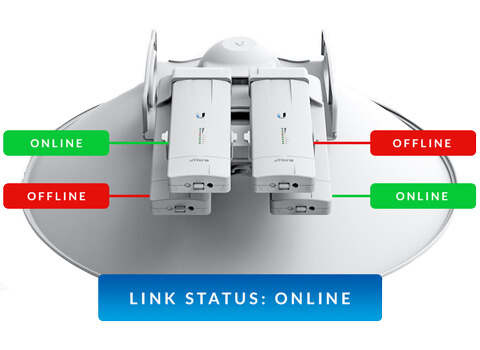

Multiple airFiber X radios with multiple carriers on multiple frequency bands provide the ultimate noise immunity and link redundancy performance.

True Redundancy


Paired with the EdgePoint for Superior Performance

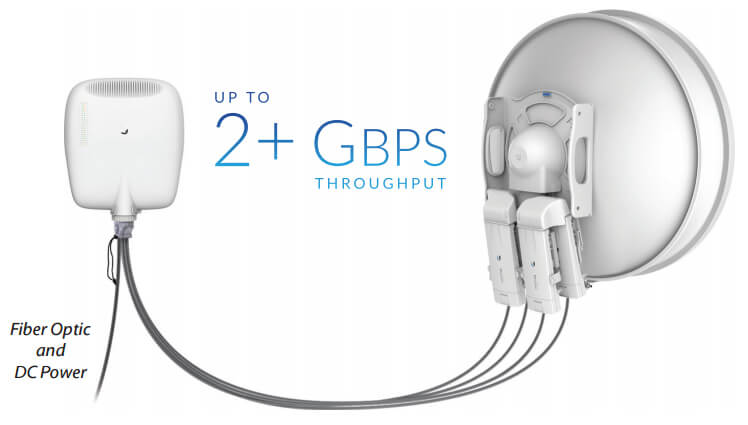

The EdgePoint provides link aggregation and powerful configuration features, including radio-link load balancing and advanced reliability for optical fiber deployments. The tower-mounted EdgePoint also simplifies the deployment by providing power to the airFiber X radios, so there is no need for individual PoE adapters and additional cabling.

Paired with the EdgePoint for Superior Performance

Product Views:

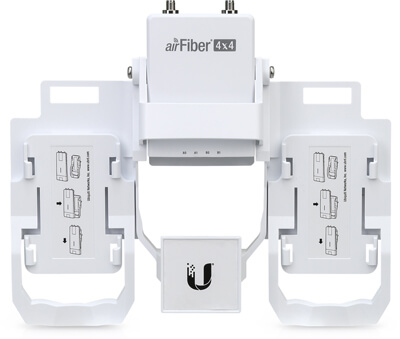

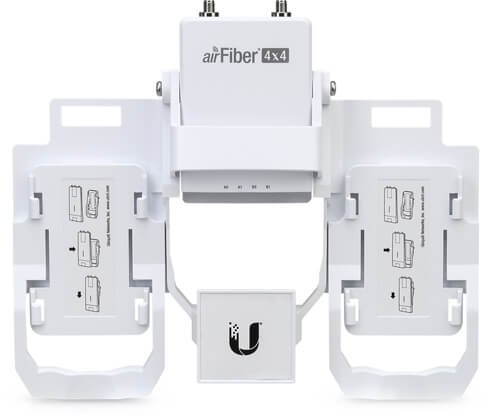

AirFiber 4x4 (AF-MPx4)





AirFiber 4x4 (AF-MPx4)
AirFiber 4x4 (AF-MPx4)

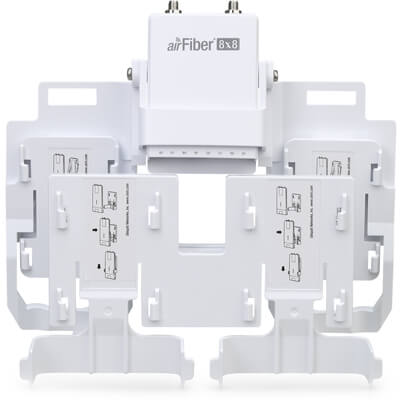

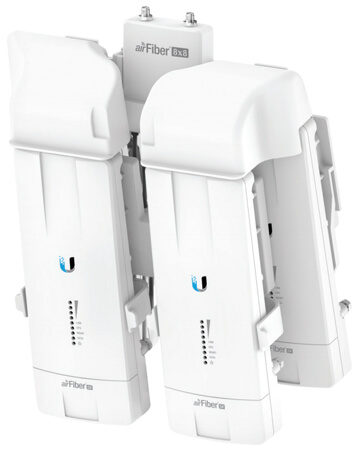

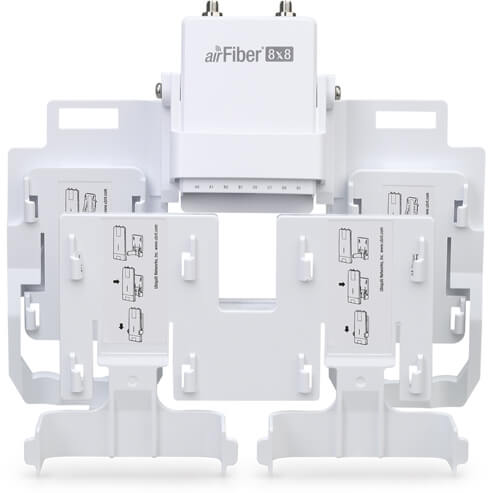

AirFiber 8x8 (AF-MPx8)

AirFiber 8x8 (AF-MPx8)
AirFiber 8x8 (AF-MPx8)

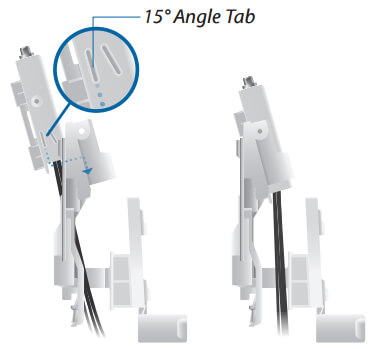

15° Angle Tab
Side 15° Angle Tab

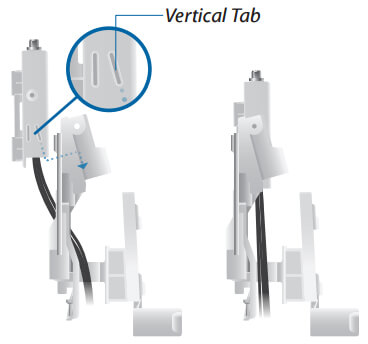

Vertical Tab
Side Vertical Tab

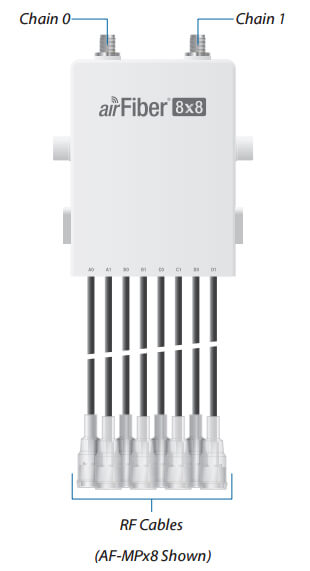

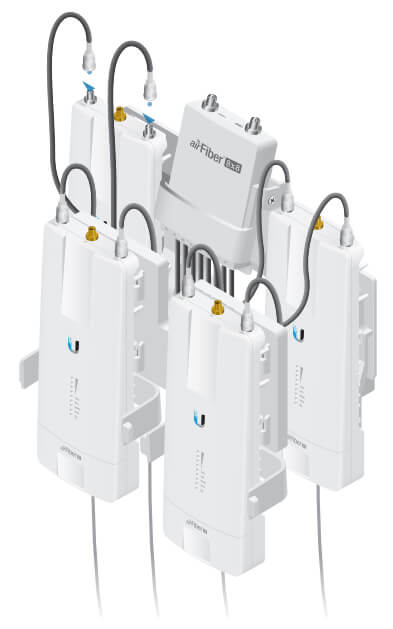

Connect the RF Cables to the airFiber X radios
Connect the RF Cables to the airFiber X radios
(airFiber radios and antennas sold seperately)

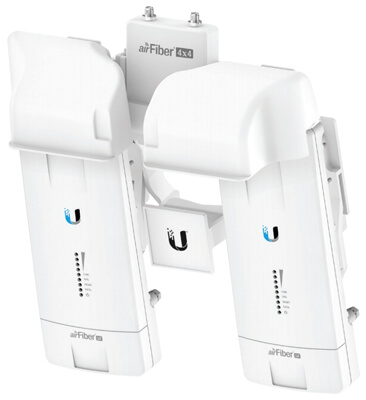

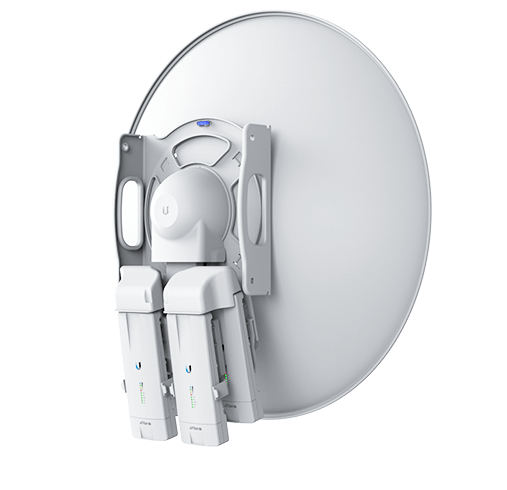

Attach the airFiber NxN assembly to antenna with the Protective Shrouds
Attach the airFiber NxN assembly to antenna with the Protective Shrouds
(airFiber radios and antennas sold seperately)

Specifications:

airFiber NxN Multiplexer

AF-MPx4 AF-MPx8
Dimensions 197.5 x 240.9 x 103.2 mm
(7.78 x 9.48 x 4.06")
210.5 x 240.9 x 109 mm
(8.29 x 9.48 x 4.29")
Weight 0.4 kg (0.8 lb) 0.45 kg (1.0 lb)
RF Connectors (2) RP-SMA Weatherproof (CH0, CH1)
(4) RP-SMA Weatherproof (A0, A1, B0, B1)
(2) RP-SMA Weatherproof (CH0, CH1)
(8) RP-SMA Weatherproof (A0, A1, B0, B1, C0, C1, D0, D1)
Cable Loss 4.1 dB 7.2 dB
Supported airFiber X Radio AF-5X AF-5X
Multiplex MIMO 2 x (2x2) 4 x (2x2)
Mounting airFiber X/Rocket Mount Compatible

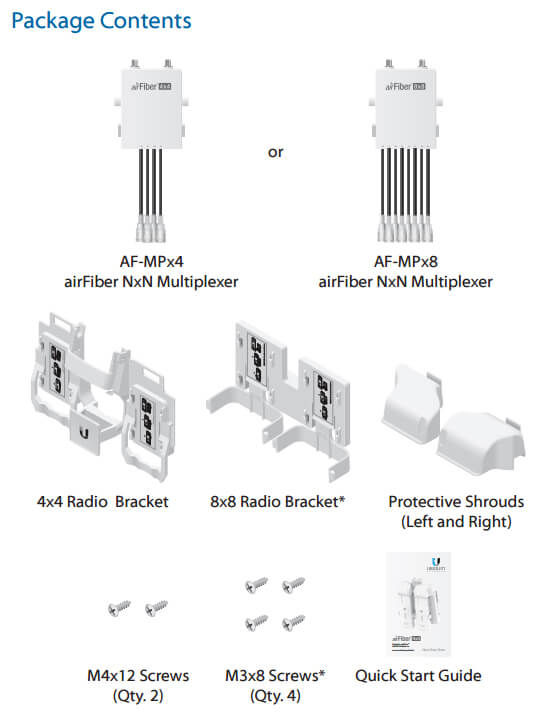

Package Contents

Documentation:

Download the Ubiquiti airFiber NxN Datasheet (PDF).

Pricing Notes:
