Ubiquiti UISP Cable
Industrial-grade Ethernet cable that protects your network from elemental and electrostatic damage
Our Price: $135.00
Click here to jump to more pricing!
Overview:
The UISP Cable is a Category 5e cable with a highly insulating, weatherproof jacket that prevents damage from rain, snow, and other extreme climatic conditions. The cable is also fortified with internal foil shielding and a drain wire that collectively shield it from electrostatic discharge (ESD) and allow it to maintain Gigabit Ethernet link rates even when electromagnetic interference is present.
- Increase Performance - Dramatically improve your ethernet link states, speeds, and overall performance with Ubiquiti UISP Cables.
- Extreme Weatherproof - UISP Cables have been built to perform even in the harshest weather and environments.
- ESD Damage Protection - Protect your networks from devastating electrostatic discharge (ESD) attacks.
- Extended Cable Support - UISP Cables have been developed to have increased power handling performance for extended cable run lengths.
Bulletproof your networks

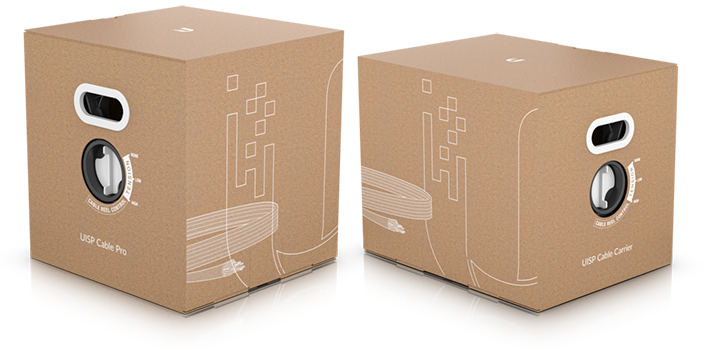

UISP Cable is currently available in two versions: PRO Shielding Protection and CARRIER Shielding Protection.

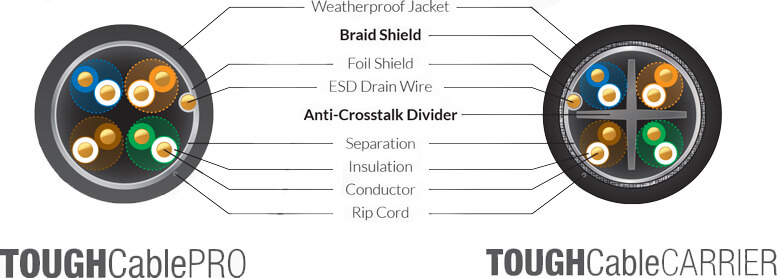

UISP Cable Pro is a Category 5e, outdoor, carrier-class shielded cable with an integrated ESD drain wire.

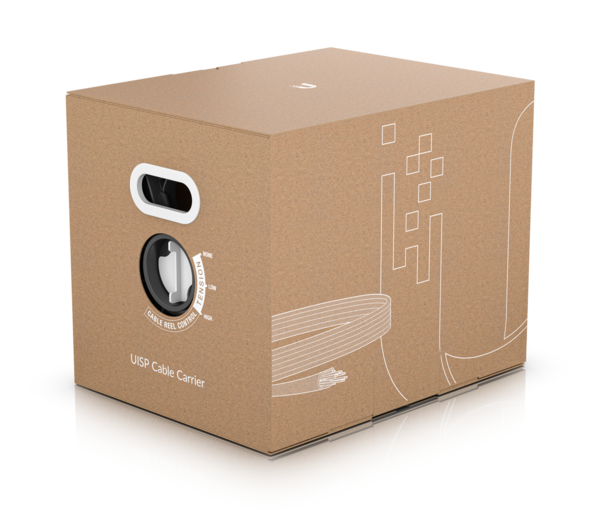

UISP Cable Carrier is a Category 6, outdoor, carrier-class shielded cable that features an integrated ESD drain wire, anti-crosstalk divider, and secondary shielding. It is rated to provide optimal performance on Gigabit Ethernet networks.
Additional Information:
- 24 AWG copper conductor pairs
- 26 AWG integrated ESD drain wire to prevent ESD attacks and damage
- PE outdoor-rated, weatherproof jacket
- Multi-layered shielding
- Available in lengths of 1000 ft (304.8 m)
UISP Cable Connectors
Specifically designed for use with Ubiquiti UISP Cables and available in 100-pc. bags, UISP Cable Connectors protect against ESD attacks and Ethernet hardware damage while allowing rapid field deployment without soldering.

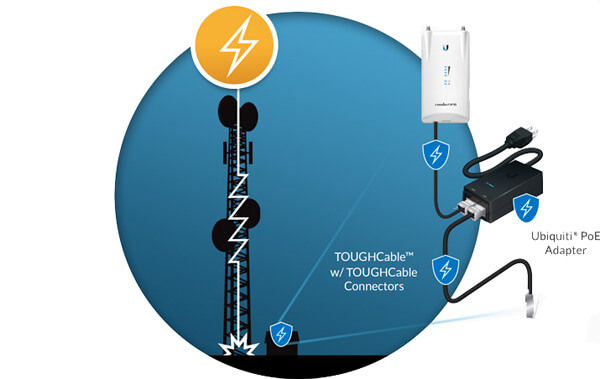

| ESD attacks are the leading cause for device failures. The diagram below illustrates the areas vulnerable to ESD attacks in a network. | By using a grounded Ubiquiti Power over Ethernet (PoE) Adapter along with Ubiquiti UISP Cable and UISP Cable Connectors, you can effectively protect against ESD attacks. |
 |
|
Features:
Increased Performance
UISP Cable dramatically increases your Ethernet link states, speeds and overall performance.
Extreme Weatherproof Design
UISP Cable has been built to perform in even the harshest weather and environments.
ESD Damage Protection
UISP Cable protects your networks from devastating electrostatic discharge attacks.

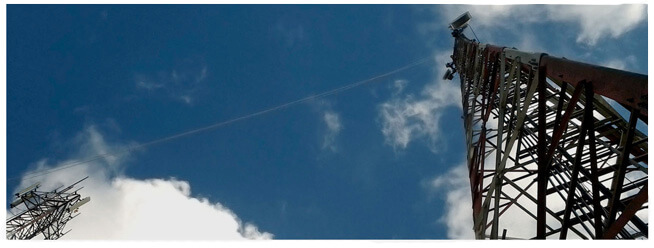

Extended Cable Support
UISP Cable has been developed to increase power handling performance for extended cable run lengths.

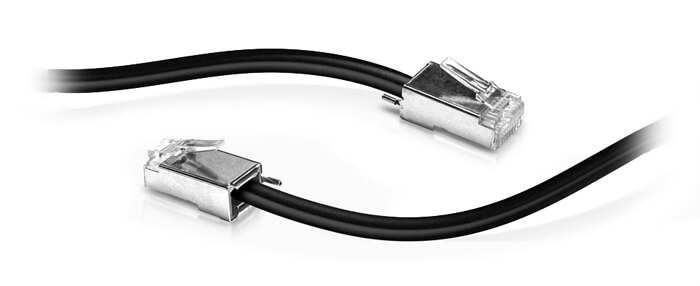

UISP Cable Connectors
Specifically designed for use with UISP Cable, the UISP Cable Connectors protect against ESD attacks and Ethernet hardware damage, while allowing rapid field deployment without soldering.
Product Views:
Specifications:
| UISP Cable Pro | UISP Cable Carrier | |
|---|---|---|
| Level 1 Shielding Protection | Level 2 Shielding Protection | |
| Box Dimensions | 330 x 330 x 340 mm (13 x 13 x 13.4"): | 330 x 425 x 340 mm (13 x 16.7 x 13.4 |
| Box Weight | 12 kg (26.5 lb) | 16 kg (35.3 lb) |
| Cable Length | 305 m (1000 ft) | 305 m (1000 ft) |
| Cable Color | Black | Black |
| Cable Type | CAT5e, Shielded | CAT5e, Shielded |
| Ethernet Support | Up to 1 Gbps | Up to 1 Gbps |
| Conductor Wire Gauge | 24 AWG | 24 AWG |
| Conductor | Solid Bare Copper | Solid Bare Copper |
| Conductor Type | Solid Bare Copper | Solid Bare Copper |
| Conductor Diameter | 0.500 ± 0.005 mm | 0.500 ± 0.005 mm |
| Insulation Type | Solid Polyethylene | Solid Polyethylene |
| Insulation Thickness | Avg. 0.26 mm (Min. 0.25 mm) | Avg. 0.295 mm (Min. 0.29 mm) |
| Insulation Diameter | 1.04 ± 0.03 mm | 1.16 ± 0.02 mm |
| Separation (Polyester Wrapping) | Thick: 0.025 mm, Extent: 20 mm | Thick: 0.025 mm, Extent: 20 mm |
| Anti-Crosstalk Divider | None | LDPE: 4.2*0.3 mm |
| Cable Shield (Aluminum Foil) | Thick: 0.060 mm, Extent: 18 mm | Thick: 0.060 mm, Extent: 20 mm |
| ESD Drain Wire | 0.4 CCS | 0.4 TC |
| Rip Cord | Yes | Yes |
| Jacket Material | Polyethylene | Polyethylene |
| Jacket Thickness | Avg. 0.50 mm (Min. 0.46 mm) | Avg. 0.52 mm (Min. 0.46 mm) |
| Jacket Diameter | 6.0 ± 0.30 mm | 6.8 ± 0.30 mm |
| Storage Temperature | -30 to 75°C (-22 to 167°F) | -30 to 75°C (-22 to 167°F) |
| Installation Temperature | -20 to 60°C (-4 to 140°F) | -20 to 60°C (-4 to 140°F) |
| Operation Temperature | -40 to 80°C (-40 to 176°F) | -40 to 80°C (-40 to 176°F) |
| Standards | ANSI/TIA-568-C.2 (2009) ISO/IEC 11801 (Edition 2.2) |
ANSI/TIA-568-C.2 (2009) ISO/IEC 11801 (Edition 2.2) |
Performance:
| UISP Cable Pro Performance | |||||
|---|---|---|---|---|---|
| Frequency (MHz) |
RL (dB) min. | Attenuation (dB/100 m) |
NEXT/PSNEXT (dB) |
ACR (dB) | ELFEXT/PSELFEXT (dB/100 m) |
| 1 | 17.0 | 2.03 | 62.30 | 60.30 | 60.75 |
| 4 | 18.8 | 4.04 | 53.26 | 49.20 | 48.71 |
| 8 | 19.7 | 5.76 | 48.75 | 43.00 | 42.69 |
| 10 | 20.0 | 6.46 | 47.30 | 40.80 | 40.75 |
| 16 | 20.0 | 8.24 | 44.30 | 36.10 | 36.67 |
| 20 | 20.0 | 9.26 | 42.78 | 33.50 | 34.73 |
| 25 | 19.3 | 10.41 | 41.33 | 30.90 | 32.79 |
| 31.25 | 18.6 | 11.72 | 39.87 | 28.20 | 30.86 |
| 62.5 | 16.5 | 16.99 | 35.36 | 18.40 | 24.83 |
| 100 | 15.1 | 21.97 | 32.29 | 10.30 | 20.75 |
| 150 | 13.80 | 23.40 | 18.60/30.30 | 8.30 | 17.60/18.50 |
| UISP Cable Carrier Performance | |||||
|---|---|---|---|---|---|
| Frequency (MHz) |
RL (dB) min. | Attenuation (dB/100 m) |
NEXT/PSNEXT (dB) |
ACR (dB) | ELFEXT/PSELFEXT (dB/100 m) |
| 1 | 18.0 | 1.93 | 65.30 | 60.30 | 61.00 |
| 4 | 19.9 | 3.90 | 56.27 | 49.20 | 48.96 |
| 8 | 20.7 | 5.50 | 51.75 | 43.00 | 42.94 |
| 10 | 21.0 | 6.30 | 50.30 | 40.80 | 41.00 |
| 16 | 21.0 | 8.00 | 47.24 | 36.10 | 36.92 |
| 20 | 21.0 | 9.00 | 45.78 | 33.50 | 34.98 |
| 25 | 20.3 | 10.20 | 44.33 | 30.90 | 33.04 |
| 31.25 | 19.5 | 11.50 | 42.88 | 28.20 | 31.10 |
| 62.5 | 19.0 | 16.70 | 38.36 | 18.40 | 25.08 |
| 100 | 18.3 | 21.70 | 35.30 | 10.30 | 21.00 |
| 150 | 16.5 | 32.20 | 30.78/27.78 | 7.60 | 17.78/14.98 |
Documentation:
Download the Ubiquiti UISP Cable Datasheet (PDF).
