Ubiquiti Amplifi Mesh Wifi System
Complete Home Wi-Fi System
AmpliFi HD Router hardware is backordered indefinitely and cannot be purchased, please contact us for further assistance.
Overview:
AmpliFi Routers and MeshPoints are designed to work in combination to eliminate any dead spots in your home. They utilize mesh technology to provide powerful wireless performance in an innovative and simple design. The Router features an intuitive touchscreen display and the MeshPoints display wireless signal performance.
MESH WI-FI SYSTEM

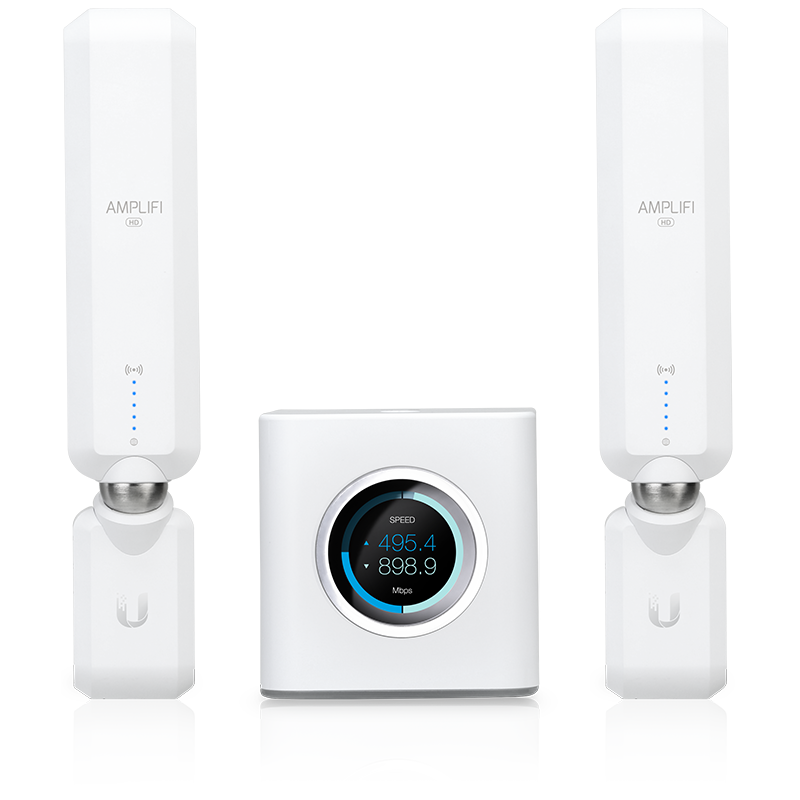

The AmpliFi HD (High Density) Mesh Wi-Fi System includes an AmpliFi Mesh Router and two wireless MeshPoints. It combines deployment flexibility and maximum Wi-Fi coverage for your home.
MESH ROUTER
The AmpliFi HD (High Density) Mesh Router takes advantage of AmpliFi's powerful performance and software features. Optionally, you can connect additional AmpliFi Mesh Routers or AmpliFi MeshPoints to expand range coverage.
MESHPOINT
The AmpliFi HD (High Density) MeshPoint features an adjustable super antenna. It can be used to expand the coverage of an AmpliFi Mesh System or turn an existing router or Wi-Fi cablebox into a powerful mesh network.
Specifications:
| Router Specifications | |
|---|---|
| Dimensions | 99.5 x 97.8 x 99.6 mm (3.91 x 3.85 x 3.92") |
| Weight | 410 g (14.46 oz) |
| Max. TX Power | 26 dBm |
| Radios | 2 |
| MIMO Chains | 6 |
| Speed | 1750 Mbps |
| Networking Interface | Wi-Fi/Gigabit Ethernet (1) WAN, (4) LAN |
| Max. Power Consumption | 11W |
| ESD/EMP Protection | ± 24kV Air/Contact |
| Buttons | Reset |
| Antennas | (1) Dual-Band Antenna, Tri-Polarity |
| Display | 40.6 mm (1.6") Diagonal, 240 x 240, 212 ppi, G+F Touch, Full Color |
| Wi-Fi Standards | 802.11ac |
| Power Save | Supported |
| Wireless Security | WPA2-PSK AES/TKIP |
| Operating Temperature | 14 to 131° F (-10 to 55° C) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC / CE / IC |
| MeshPoint Specifications | |
|---|---|
| Dimensions | 243.83 x 54 x 57.75 (9.60 x 2.13 x 2.27") |
| Weight | 224 g (7.90 oz) |
| Max. TX Power | 26 dBm |
| Radios | 2 |
| MIMO Chains | 6 |
| Speed | 1750 Mbps |
| ESD/EMP Protection | ± 24kV Air/Contact |
| Buttons | Reset |
| Antennas | (1) Dual-Band Antenna, Tri-Polarity |
| Wi-Fi Standards | 802.11ac |
| Power Save | Supported |
| Wireless Security | WPA2-PSK AES/TKIP |
| Operating Temperature | 14 to 131° F (-10 to 55° C) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC / CE / IC |
| Supported Data Rates | |
|---|---|
| 802.11ac | 13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Documentation:
Download the Ubiquiti Amplifi Datasheet (PDF).
