Ubiquiti EdgeRouter PoE
Advanced 5-Port Network Router

Overview:

The EdgeRouter™ PoE combines 1 million packets per second routing performance with passive PoE support for network devices.

Advanced Routing Technology for the Masses

Introducing the EdgeRouter from Ubiquiti Networks, part of the EdgeMAX platform. EdgeRouters combine carrier-class reliability with enterprise-level features in a compact and affordable unit. The EdgeRouter PoE and EdgeRouter Lite models are the world’s first economical router capable of routing up to 1 million packets per second. Powered by a proprietary and intuitive graphical interface, EdgeOS, EdgeRouters can easily be configured for routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.

• (5) Gigabit routing ports
• (5) PoE configurable ports
• Supports 24V PoE
• Supports 48V PoE when using 48Vdc Power Adapter (not included)
• (3) ports configurable for switching
• 1 million packets per second for 64-byte packets
• Power supply: 100-240VAC 24VDC 2.5A US-style plug

Manage Your Network

• DHCP Server
  Set up multiple DHCP servers to assign IP ranges in different subnets on the different interfaces. Easily control dynamic and static IP addressing for your network devices.
• Monitoring Tools
  Conveniently track network activity and devices from tools such as Ping, Trace, Discover, Packet Capture, and Log Monitor.
• User Accounts
  Manage access to the EdgeRouter Lite using unique administrator and operator accounts.

Secure Your Network

• Firewall Policies
  Organize the rules you apply in the order you specify.
• Firewall Groups
  Apply the policies to groups filtered by IP address, network address, or port number.
• NAT Rules
  The EdgeRouter Lite changes packet addressing based on your customized source and destination NAT rules.

Direct Traffic Flow

• Interfaces
  Each Gigabit port functions as an independent interface. You can also configure Virtual Local Area Network (VLAN) interfaces to meet your network segmentation requirements.
• Routing
  Configure static routes and dynamic routing protocols to effectively manage the routes used by the EdgeRouter.
  With these capabilities and more, the EdgeRouter provides the centralized control you need to optimize the performance and reliability of your network.

Features:

EdgeOS™ - Advanced UI

The intuitive, graphical user interface is easy to learn and makes routing features simple to configure and monitor. It includes an integrated Command-Line Interface (CLI) for convenient access to advanced functions.

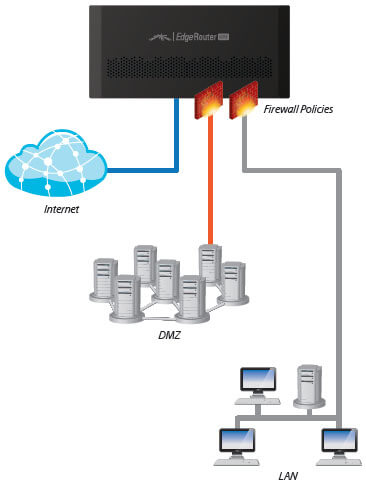

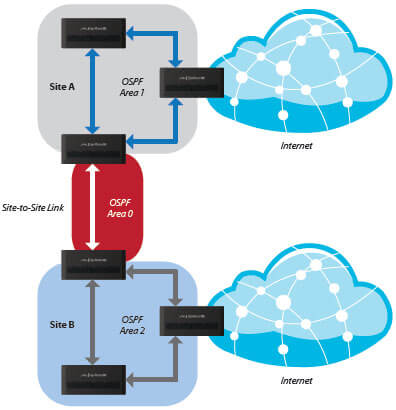

Deployment:

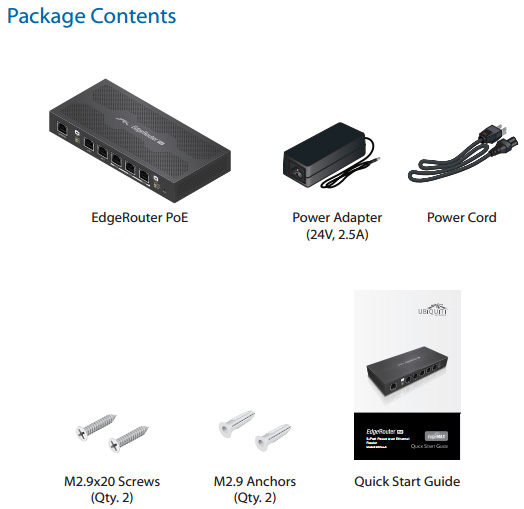

Product Views:

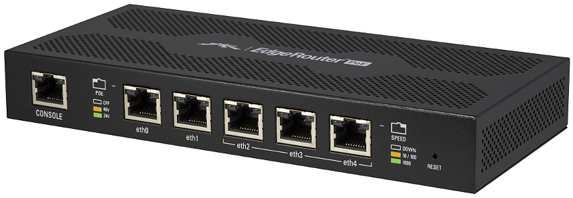

Angle View

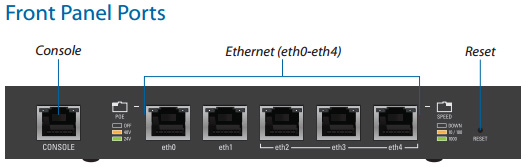

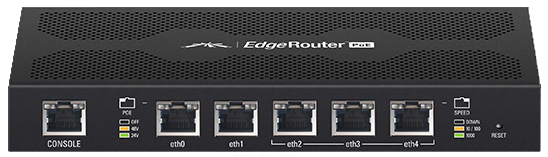

Front View

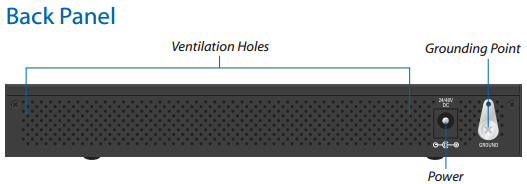

Rear View

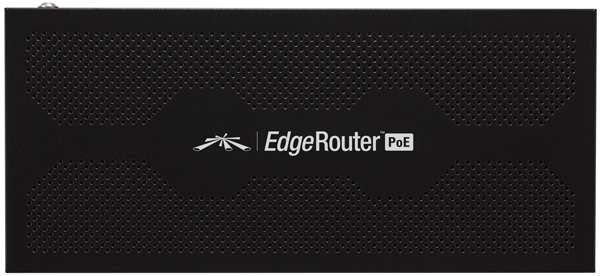

Top View

Specifications:

EdgeRouter PoE Specification
Dimensions	200 x 90 x 30 mm (7.87 x 3.54 x 1.18 in)
Weight	360 g (12.7 oz)
Max. Power Consumption	60 W
Power	24VDC, 2.5A Power Adapter (Included)
Power Input	24VDC Input (Supported Range: 18 to 26VDC) or 48VDC Input (Supported Range: 38 to 54VDC)
Button	Reset
Processor	Dual-Core 500 MHz, MIPS64 with Hardware Acceleration for Packet Processing
System Memory	512 MB DDR2 RAM
Onboard Flash Storage	2 GB
Certifications	CE, FCC, IC
Wall-Mount	Yes
Operating Temperature	-10 to 45°C (14 to 113°F)
Operating Humidity	10 - 90% Non-Condensing
Layer 3 Forwarding Performance
Packet Size: 64 Bytes	1,000,000 pps
Packet Size: 512 Bytes or Larger	3 Gbps (Line Rate)
LEDs Per Port
Serial Console Port	Power
Data Ports	PoE, Speed/Link/Activity
PoE Configurable Per Port
Serial Console Port	N/A
Data Ports	Off/24V/48V*
Networking Interfaces
Serial Console Port	(1) RJ45 Serial Port
Data Ports	(3) 10/100/1000 Ethernet Ports
PoE with 24VDC Power Adapter
PoE Out Voltage Range	22-24VDC
Max. PoE Wattage Per Data Port	11.5 W (24V)
Max. PoE Wattage Combined for All 5 Data Ports	50W
PoE Method	Passive
PoE with 48VDC Power Adapter (Not Included)
PoE Out Voltage Range	22-24VDC / 45-48VDC
Max. PoE Wattage Per Data Port	11.5 W (24V), 23 W (48V)
Max. PoE Wattage Combined for All 5 Data Ports	50W
PoE Method	Passive

* 48V available when using 48VDC Power Adapter (not included).

Software:

EdgeMAX Software Platform

EdgeOS provides an intuitive, easy-to-use graphical user interface that makes router features simple to configure and monitor. It even comes with an integrated command-line interface (CLI) right in the browser, allowing access to all the advanced functions of the router.

EdgeOS Specifications
Interface/Encapsulation	Ethernet 802.1q VLAN PPPoE GRE IP in IP Bridging Bonding (802.3ad)
Addressing	Static IPv4/IPv6 Addressing DHCP/DHCPv6
Routing	Static Routes OSPF/OSPFv3 RIP/RIPng BGP (with IPv6 Support) IGMP Proxy
Security	ACL-Based Firewall Zone-Based Firewall Application Identification with Deep Packet Inspection (DPI) NAT
VPN	IPSec Site-to-Site and Remote Access OpenVPN Site-to-Site and Remote Access PPTP Remote Access L2TP Remote Access PPTP Client
Services	DHCP/DHCPv6 Server DHCP/DHCPv6 Relay Dynamic DNS DNS Forwarding VRRP RADIUS Client Web Caching PPPoE Server
QoS	FIFO Stochastic Fairness Queueing Random Early Detection Token Bucket Filter Deficit Round Robin Hierarchical Token Bucket Ingress Policing
Management	Web UI CLI (Console, SSH, Telnet) SNMP NetFlow LLDP NTP UBNT Discovery Protocol Logging

Miscellaneous:

Protect your networks from the most brutal environments with Ubiquiti's industrialgrade shielded ethernet cable, TOUGHCable.

• Increase Performance - Dramatically improve your ethernet link states, speeds, and overall performance with Ubiquiti TOUGHCables.
• Extreme Weatherproof - TOUGHCables have been built to perform even in the harshest weather and environments.
• ESD Damage Protection - Protect your networks from devastating electrostatic discharge (ESD) attacks.
• Extended Cable Support - TOUGHCables have been developed to have increased power handling performance for extended cable run lengths.

Bulletproof your networks

TOUGHCable is currently available in two versions: PRO Shielding Protection and CARRIER Shielding Protection.

Additional Information:

• 24 AWG copper conductor pairs
• 26 AWG integrated ESD drain wire to prevent ESD attacks and damage
• PE outdoor-rated, weatherproof jacket
• Multi-layered shielding
• Available in lengths of 1000 ft (304.8 m)

TOUGHCable Connectors

Specifically designed for use with Ubiquiti TOUGHCable, TOUGHCable Connectors protect against ESD attacks and Ethernet hardware damage, while allowing rapid field deployment without soldering. The standard TOUGHCable Connectors are available in a box of 100, while the TC-GND versions include ground wires and are available in a box of 20.

ESD attacks are the leading cause for device failures. The diagram below illustrates the areas vulnerable to ESD attacks in a network.	By using a grounded Ubiquiti Power over Ethernet (PoE) Adapter along with Ubiquiti TOUGHCable and TOUGHCable Connectors, you can effectively protect against ESD attacks.

Documentation:

Download the Ubiquiti EdgeMAX EdgeRouter Datasheet (PDF).
