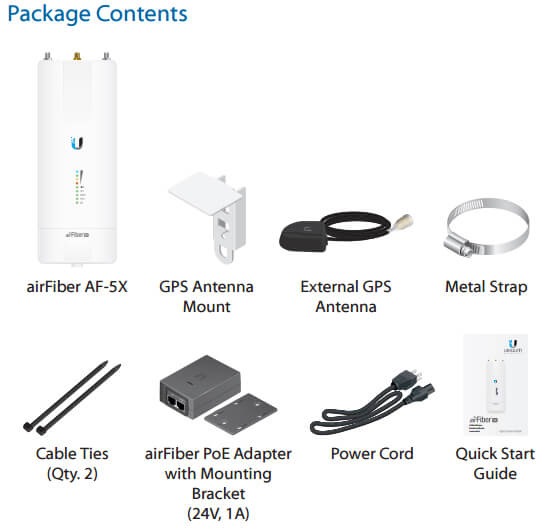

Ubiquiti airFiber 5X
5 GHz Carrier Backhaul Radio
Sorry, this product is no longer available, replaced by the airFiber 5XHD.
Overview:
The airFiber X features up to 17.1 Mbps/MHz of industry-leading spectral efficiency and uses proprietary Hybrid Division Duplexing technology to achieve the highest TDD throughput available for long-range, PtP links.
Ubiquiti Networks continues to disrupt the wireless broadband market with revolutionary technology at breakthrough pricing by introducing the airFiber X, a modular airFiber radio system that will serve a wide range of frequencies and is designed to be compatible with a variety of Ubiquiti antennas. Building upon the proven design of the airFiber system, the airFiber X allows you to customize airFiber backhaul links or upgrade existing Rocket Point-to-Point (PtP) links.
Engineered for Performance
Ubiquiti's INVICTUS custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications. Our INVICTUS core communications processing engine surpasses all of the limitations inherent to generic Wi-Fi chips to provide superior performance, long-range capability, DFS flexibility, and higher delivered throughput.
The airFiber X features industry-leading spectral efficiency of up to 17.1 Mbps/MHz, line-rate data packet processing of up to 525 Mbps of real data throughput, and innovative xtreme Range Technology (xRT) for up to 200+ km in range.
Features:
Deployment Flexibility
The compact form factor allows the airFiber X to be used with airFiber Slant 45 antennas, or instantly upgrade a 5 GHz Rocket link that uses a RocketDish RD-5G30/RD-5G34* antenna.
Carrier Backhaul for the World
Deploy the 2.4, 3, or 5 GHz model that meets your specific spectrum requirements, anywhere around the world. The airFiber X features multiple channel width options to suit your deployment needs – up to 11 different channel sizes available for the AF-2X or AF-3X.
Optimal Operation and Channel Configuration
Channel width flexibility allows you to independently configure TX and RX channel frequencies and place them anywhere within the radio band to avoid local interference. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.
Ultra-Low Latency with HDD Technology
The airFiber X is designed to provide the highest TDD throughput and lowest latency available using proprietary Hybrid Division Duplexing (HDD) technology.
Co-Location
With tower space at a premium, the importance of being able to co-locate equipment is becoming an essential attribute for modern wireless networks. The airFiber X is engineered to permit multiple radios to operate side by side, allowing maximum spectral efficiency.
GPS Synchronization
Precise GPS frame synchronization enables co-located airFiber X radios to transmit and receive data without interfering with each other, enabling better frequency reuse and increased network stability.
Clean Power Output
Using advanced digital signal processing, the innovative airFiber X radio design has an ultra-clean transmitter output, reducing broadband noise, facilitating co-location, and enabling higher-order modulations like 256QAM for greater throughput.
Backhaul
2.4 GHz
The 2.4 GHz frequency band
is free to use, worldwide; and
with its proprietary protocol,
the AF-2X increases both range
and delivered throughput in this
popular band.
The 3 GHz frequency band offers interference-free operation, enabling the AF-3X to provide a high-reliability backhaul solution, although a license may be required in some regions.
The AF-5X covers the entire, license-free, 5 GHz spectrum and includes DFS approval. Anyone around the world can deploy and operate the AF-5X in the 5 GHz range practically anywhere they choose (subject to local country regulations).
Optimal Operation in Unlicensed Bands
Channel width flexibility* allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference, and the channel centers are selectable in 1 MHz increments.
- AF-2X/AF-3X: 3.5, 5, 7, 10, 14, 20, 28, 30, 40, 50, or 56 MHz
- AF-5X: 10, 20, 30, 40, or 50 MHz
You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.
Product Views:

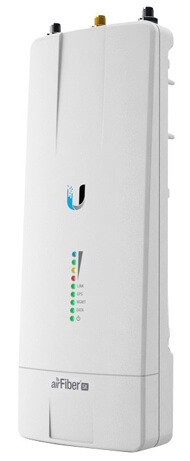

Angle View

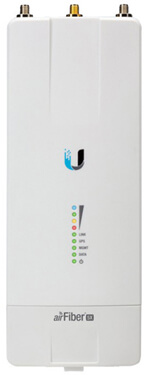

Front View
Rear View
Side View
Bottom View
Top View
Ports View
Specifications:

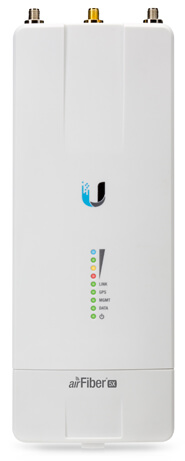

Front View
Ports View
Signal LEDs
| airFiber 5X Specification | |
|---|---|
| Dimensions | 224 x 82 x 48 mm (8.82 x 3.23 x 1.89") |
| Weight | 0.35 kg (0.77 lb) |
| RF Connectors | (2) RP-SMA Weatherproof (CH0, CH1) (1) SMA Weatherproof (GPS) |
| GPS Antenna | External, Magnetic Base |
| Power Supply | 24V, 1A PoE Gigabit Adapter (Included) |
| Power Method | Passive Power over Ethernet Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-) |
| Max. Power Consumption | 12W |
| Supported Voltage Range | 19-29VDC |
| Mounting | airFiber X Mount (Rocket Mount Compatible) GPS Pole Mount (Included) |
| Certifications | CE, FCC, IC |
| Operating Temperature | -40 to 55° C (-40 to 131° F) |
| Networking Interface | |
| Data Port | (1) 10/100/1000 Ethernet Port |
| Management Port | (1) 10/100 Ethernet Port |
| System | |
| Processor | INVICTUS IC |
| Maximum Throughput | 500+ Mbps1 |
| Maximum Range | 200+ km1 |
| Encryption | 128-bit AES |
| OS | airOS F |
| Wireless Modes | Master/Slave |
| Radio Frequency | |
| Frequency Range | FCC 15.407: 5150 - 5350 MHz, 5470 - 5850 MHz IC RSS-210: 5470 - 5600 MHz, 5650 - 5850 MHz ETSI EN 301 893, EN 302 502: 5470 - 5875 MHz Other Regions: 5150 - 5950 MHz2 |
| Max. Conducted TX Power | 26 dBm2 (Dependent on Regulatory Region) |
| Frequency Accuracy | ± 2.5 ppm without GPS Synchronization ± 0.2 ppm with GPS Synchronization |
| Channel Bandwidth | 10/20/30/40/50 MHz Selectable Programmable Uplink and Downlink Duty Cycles |
1 Throughput and range values may vary depending on the environmental conditions.
2 For region-specific details, refer to the Compliance chapter of the airFiber X User Guide at downloads.ubnt.com/airfiber
Receive Sensitivity:
| airFiber 5X Suggested Max. TX Power | |
|---|---|
| 8x | 19 - 20 dBm |
| 6x | 21 - 22 dBm |
| 4x | 23 - 24 dBm |
| 2x | 26 dBm |
| 1x | 26 dBm |
| airFiber 5X Receive Sensitivity | ||||||
|---|---|---|---|---|---|---|
| Rate | Modulation | Sensitivity (10 MHz) |
Sensitivity (20 MHz) |
Sensitivity (30 MHz) |
Sensitivity (40 MHz) |
Sensitivity (50 MHz) |
| 8x | 256QAM MIMO | -66 dBm | -64 dBm | -62 dBm | -61 dBm | -60 dBm |
| 6x | 64QAM MIMO | -74 dBm | -71 dBm | -69 dBm | -68 dBm | -67 dBm |
| 4x | 16QAM MIMO | -81 dBm | -78 dBm | -76 dBm | -75 dBm | -74 dBm |
| 2x | QPSK MIMO | -88 dBm | -85 dBm | -83 dBm | -82 dBm | -81 dBm |
| 1x | ½ Rate QPSK xRT | -90 dBm | -87 dBm | -85 dBm | -84 dBm | -83 dBm |
Software:
Loaded with Powerful Features
airOS F is an intuitive, versatile, highly developed Ubiquiti firmware technology that resides on airFiber. It is exceptionally intuitive and was designed to require no training to operate. Behind the user interface is a powerful firmware architecture which enables hi-performance network backhauls.
airOS F Tools
- Speed Test
- Antenna Alignment
- Device Discovery
- Site Survey
- Ping
- Traceroute
airOS F Integrated Technologies
airFiber's purpose-built hardware provides superior wireless performance, higher capacity, and lower latency. Unlike standard WiFi protocols, Ubiquiti airFiber's Hybrid Division Duplex (HDD) provides the best of both worlds — latency performance of Frequency Division Duplex (FDD) with the spectral efficiency of Time Division Duplex (TDD).
- Master
- Slave
Wireless Network Configuration
- Transmit Frequency
- Receive Frequency
- Output Power
- Modulation Rate
- Automatic Modulation Rate Adaptation
- Duplex: Half or Full
- High/Low RX Gain
- Wireless Security: AES-128
Network Mode
- Transparent Layer 2 Bridge
Network Configuration
- In-Band Management
- Management VLAN
- Automatic check for airOS F Updates
- Configuration Test Mode
- Firmware Recovery via TFTP
- Reset to Factory Defaults
- Configuration Management: Backup/Restore Device Configuration
- Administrator/Read-Only Access
- WEB/SSH/Telnet Access
- Dynamic DNS
- NTP Client
- Ping Watchdog
- SNMP v1 Support
- System Log: Local/Remote
- Full Statistical Performance Reporting
Tools
- Speed Test
- Antenna Alignment
- Device Discovery
- Ping
- Traceroute
Documentation:
Download the Ubiquiti airFiber X Datasheet (PDF).
